What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

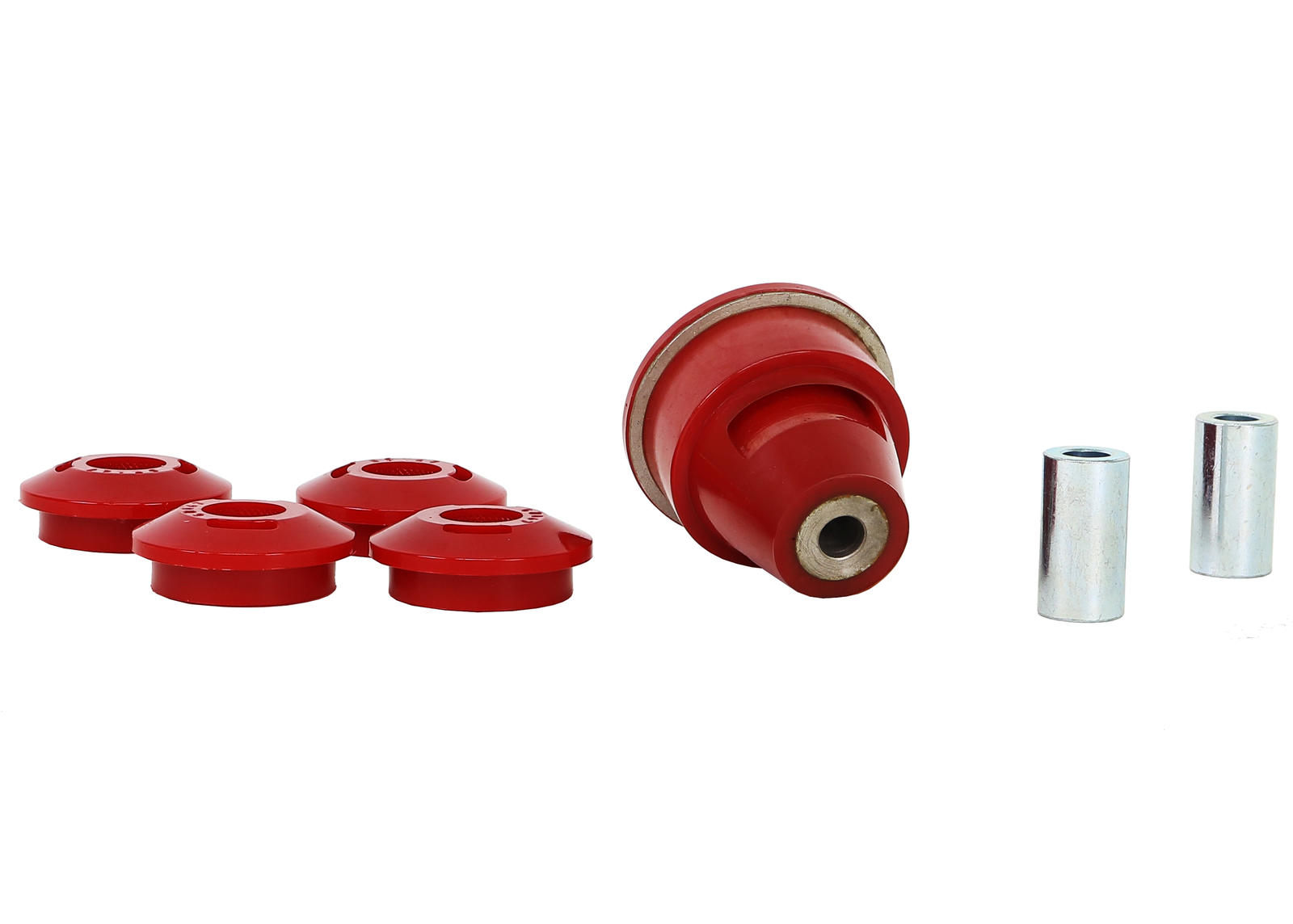

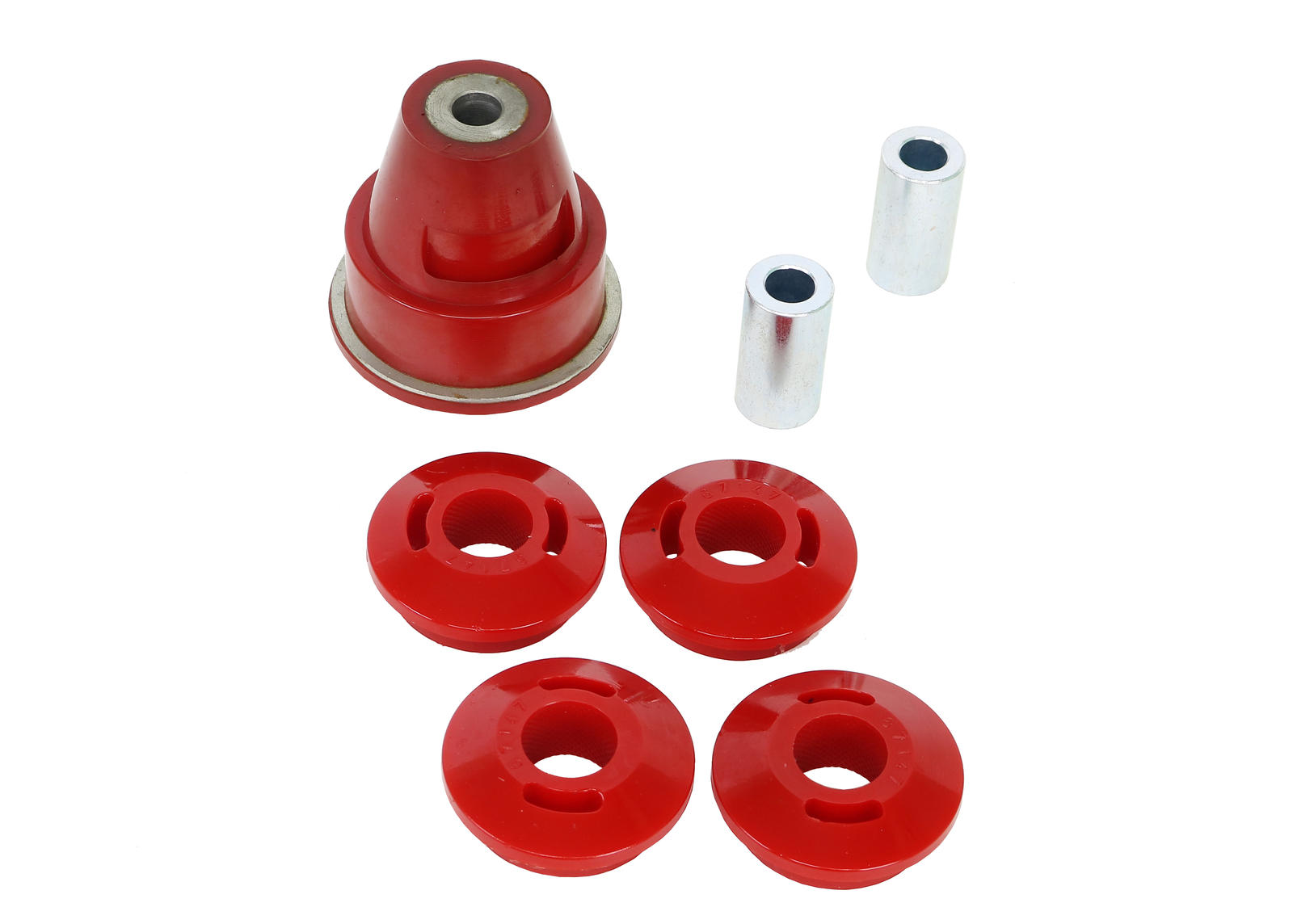

Rear Differential Mount - Front Bushing Kit to Suit Mitsubishi Lancer CJ, CY Ralliart Awd

Description

Benefit Note:

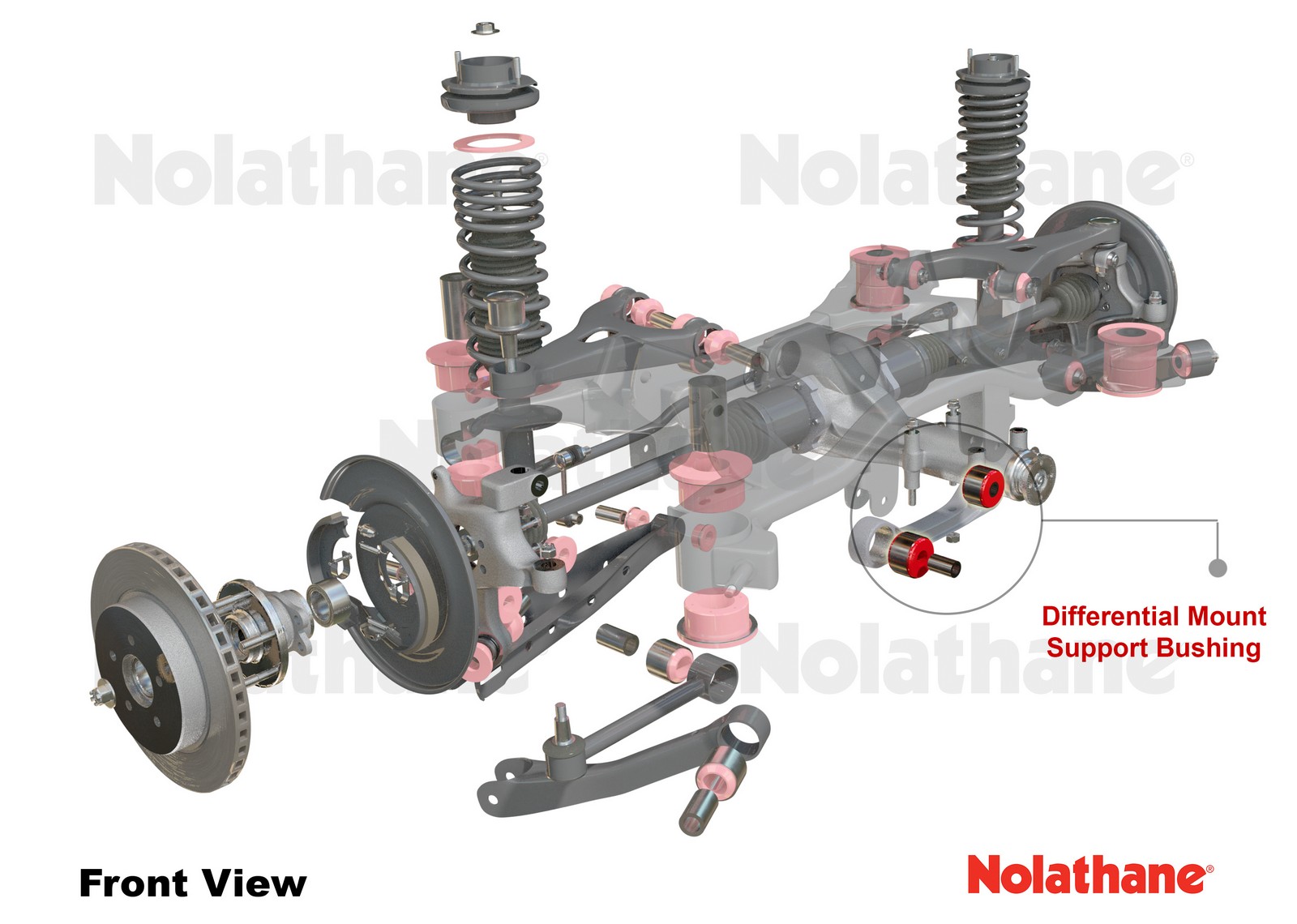

Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

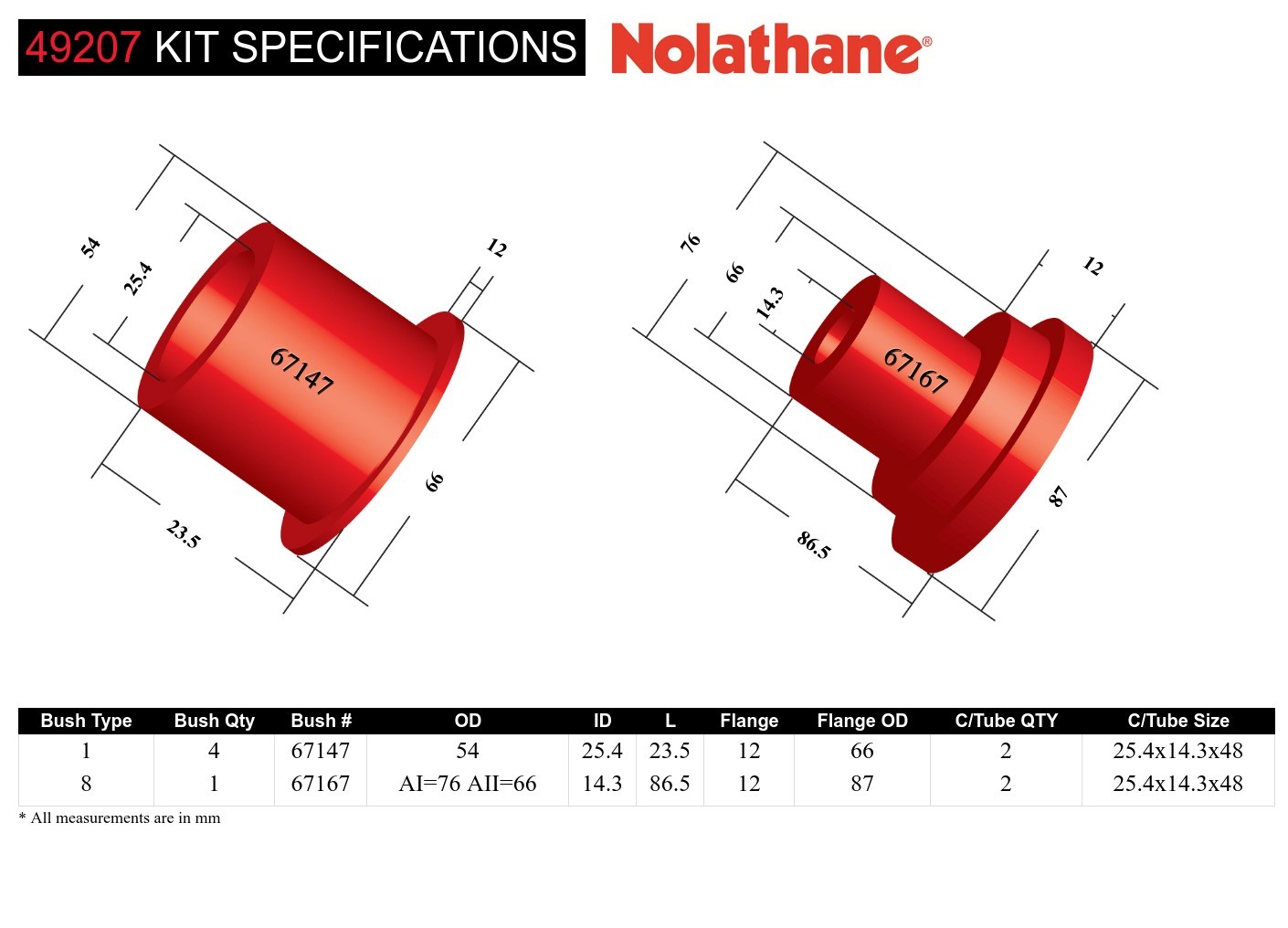

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	54 mm	25.4 mm	23.5 mm	12 mm	66 mm	2	25.4x14.3x48 mm	Click Here
8 - Stepped OD Shackle Bushing	1 mm	AI=76 AII=66 mm	14.3 mm	86.5 mm	12 mm	87 mm	2	25.4x14.3x48 mm	Click Here

Bush Type	1 - Shackle Bushing	8 - Stepped OD Shackle Bushing
Bush Quantity	4 mm	1 mm
OD (A)	54 mm	AI=76 AII=66 mm
ID (B)	25.4 mm	14.3 mm
Length (C)	23.5 mm	86.5 mm
Flange Thickness (D)	12 mm	12 mm
Flange OD (E)	66 mm	87 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	25.4x14.3x48 mm	25.4x14.3x48 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 8 - Stepped OD Shackle Bushing

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	54	25.4	23.5	12	66	2	25.4x14.3x48	Click Here
8	1	AI=76 AII=66	14.3	86.5	12	87	2	25.4x14.3x48	Click Here

Bush Type	1	8
QTY	4	1
OD (A)	54	AI=76 AII=66
ID (B)	25.4	14.3
Length (C)	23.5	86.5
FL (D)	12	12
FLOD (E)	66	87
C/Tube Qty	2	2
C/Tube Size	25.4x14.3x48	25.4x14.3x48
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1.07kg	10cm	26cm	16cm
in/lbs	2.36lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1.07kg	2.36lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	49207
Foot Note 1	Positive diff retention
Foot Note 3	Lifetime Warranty
Components Per	5 Bushings, 2 Tubes
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924393657

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.

Shipping & Returns

Shipping Times

You can use the shipping calculator to find your shipping costs. The shipping calculator will also show all shipping prices.

Returns

We guarantee the fitment and quality of our products, but if you choose to return an item we offer a generous 60 day returns policy. See our returns policy here.

Warranty

All products sold by Nolathane are covered by a national warranty. The products warranty is subject to conditions from the date of purchase, unless otherwise stated on the item.

Warranty claims must meet certain criteria and be sent to Nolathane with a receipt to be eligible for a refund. See full warranty claim criteria here.
