What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

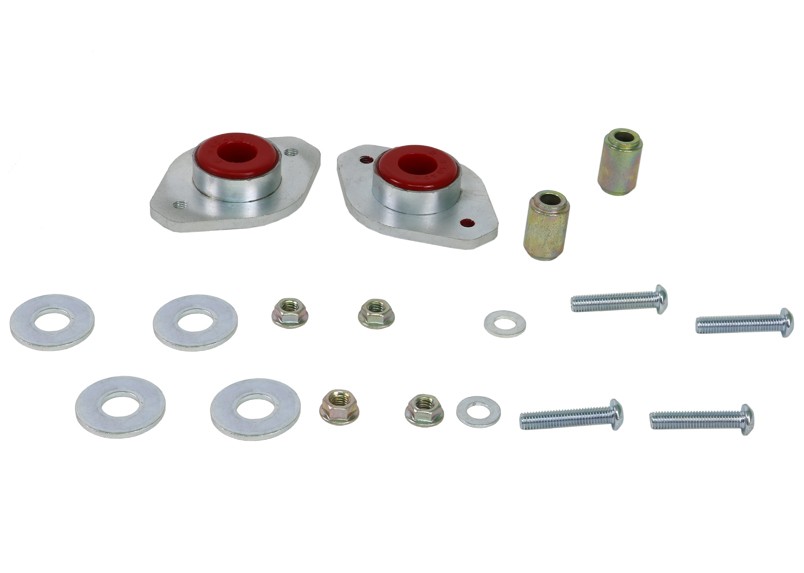

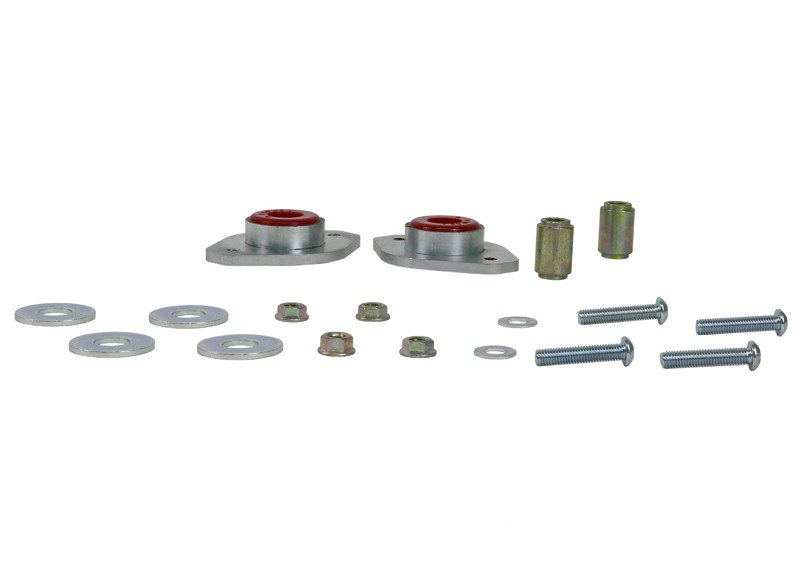

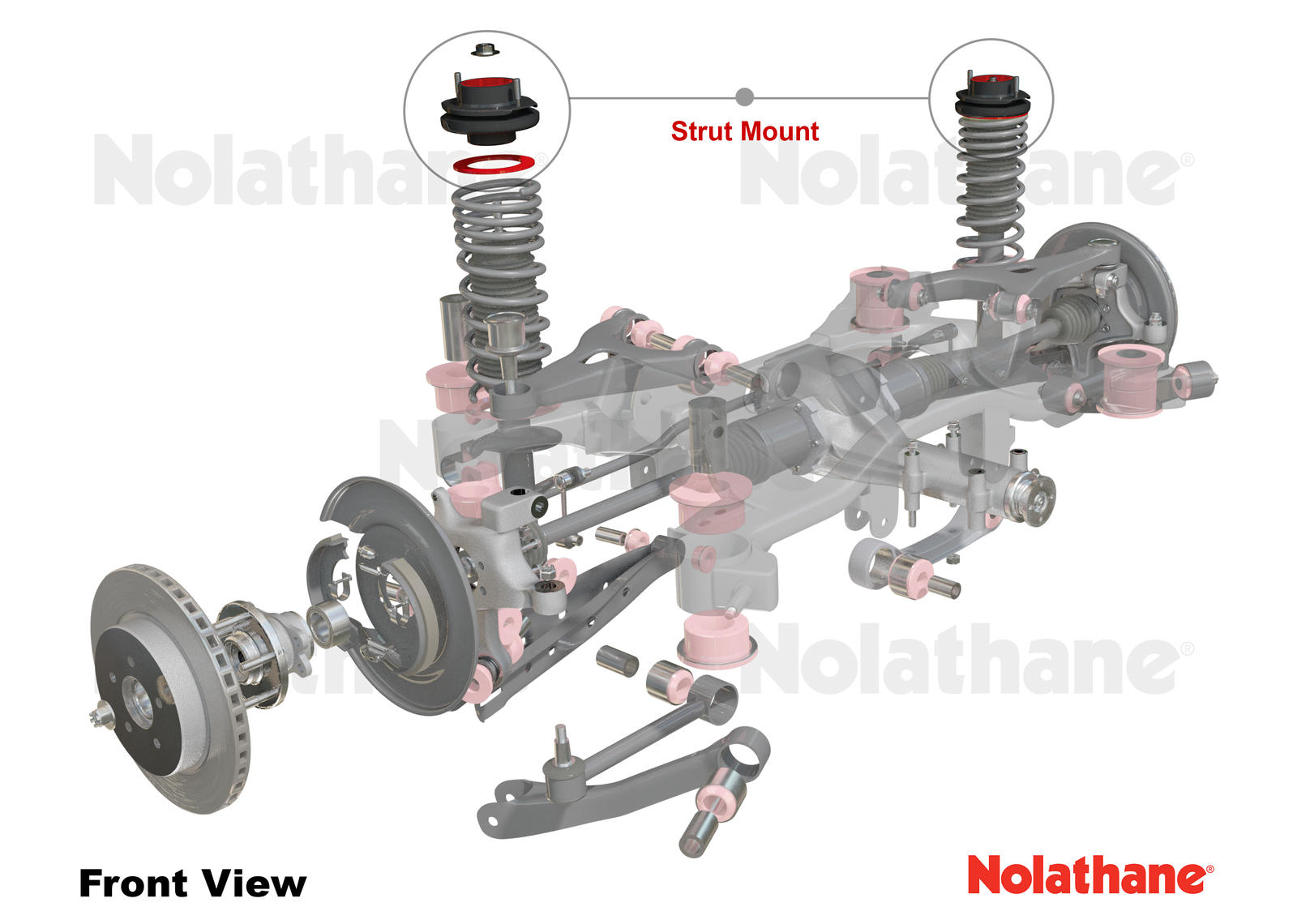

Rear Strut Mount - Kit to Suit BMW 3 Series, M3 and Z3

Description

Benefit Note:
Worn factory mounts can be typically diagnosed by a creaking noises from the rear end over speed humps or driveways. If this is the case the upper strut mounts have failed and need replacing ASAP. Nolathane's highly durable material formulation combined with heavy duty roller bearing to give your vehicle the perfect servicing and enhancement solution.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

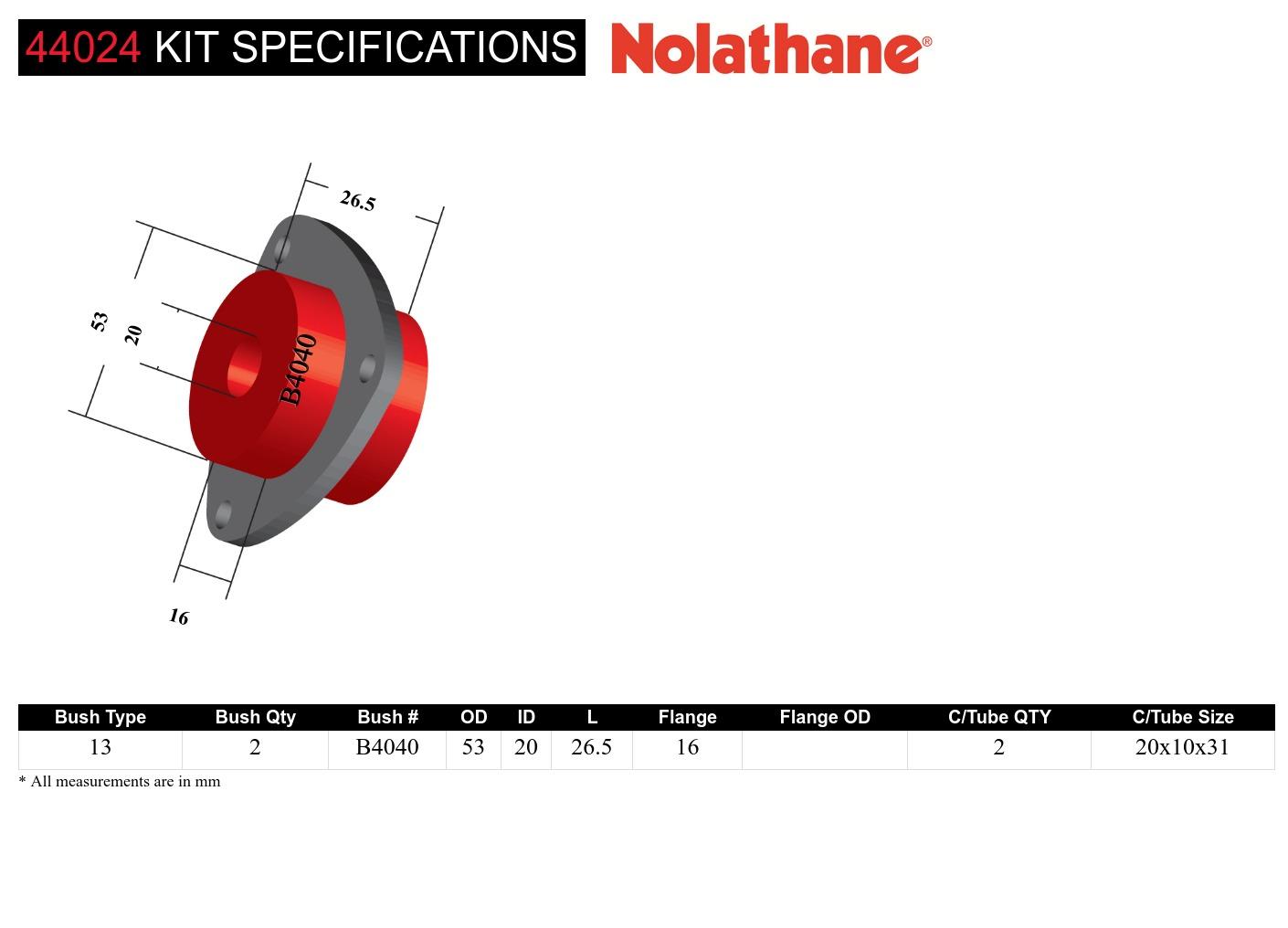

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
13 - Bushing With Mounting Plate	2 mm	53 mm	20 mm	26.5 mm	16 mm		2	20x10x31 mm	Click Here

Bush Type	13 - Bushing With Mounting Plate
Bush Quantity	2 mm
OD (A)	53 mm
ID (B)	20 mm
Length (C)	26.5 mm
Flange Thickness (D)	16 mm
Flange OD (E)
C/Tube Quantity	2
C/Tube ODxIDxL	20x10x31 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 13 - Bushing With Mounting Plate

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
13	2	53	20	26.5	16		2	20x10x31	Click Here

Bush Type	13
QTY	2
OD (A)	53
ID (B)	20
Length (C)	26.5
FL (D)	16
FLOD (E)
C/Tube Qty	2
C/Tube Size	20x10x31
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.714kg	7cm	20cm	14cm
in/lbs	1.57lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.714kg	1.57lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	44024
Foot Note 2	Non adjustable
Foot Note 3	Lifetime Warranty
Components Per	2 Mounts
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9319924373512

Installation & Fitment Guide

More Information
Installation Time	3 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
