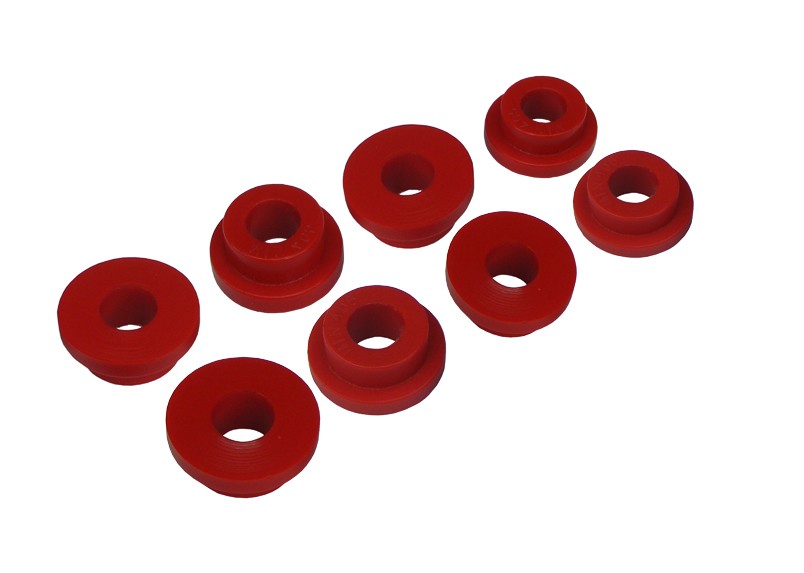

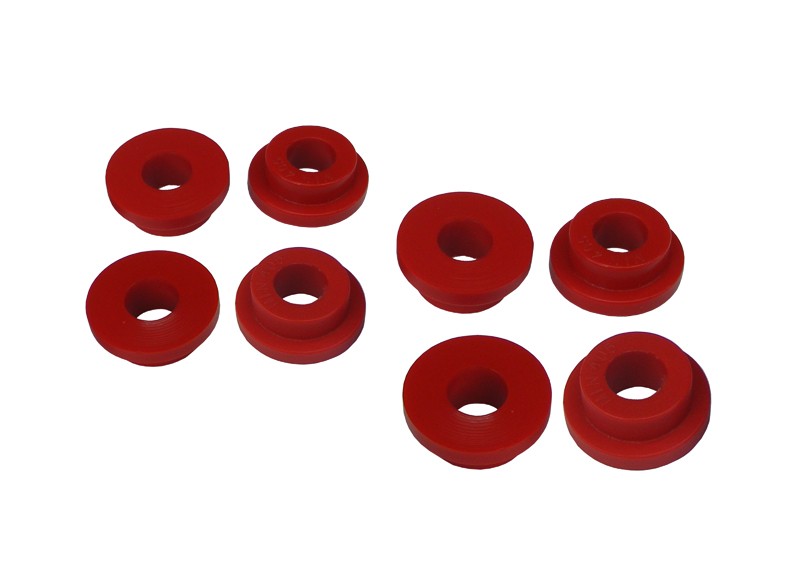

Rear Subframe - Bushing Kit to Suit Austin/Leyland Mini and Moke

Description

Benefit Note:
This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	8 mm	29 mm	16.3 mm	16 mm	6 mm	39 mm			Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	8 mm
OD (A)	29 mm
ID (B)	16.3 mm
Length (C)	16 mm
Flange Thickness (D)	6 mm
Flange OD (E)	39 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	8	29	16.3	16.0	6	39			Click Here

Bush Type	1
QTY	8
OD (A)	29
ID (B)	16.3
Length (C)	16.0
FL (D)	6
FLOD (E)	39
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.132kg	7cm	20cm	14cm
in/lbs	0.29lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.132kg	0.29lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	49023
Foot Note 3	Lifetime Warranty
Components Per	8 Bushings
Product Note	Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
EAN	9314258505936

Installation & Fitment Guide

More Information
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
