Rear Sway Bar Link - Lower Bushing Kit to Suit Toyota Rav 4 ACA31

Description

Benefit Note:
Worn or deteriorated link bushings although small can have considerable influence over sway bar performance and more notably vehicle handling behaviour. Nolathane bushings are engineered to last and deliver improved driving performance.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

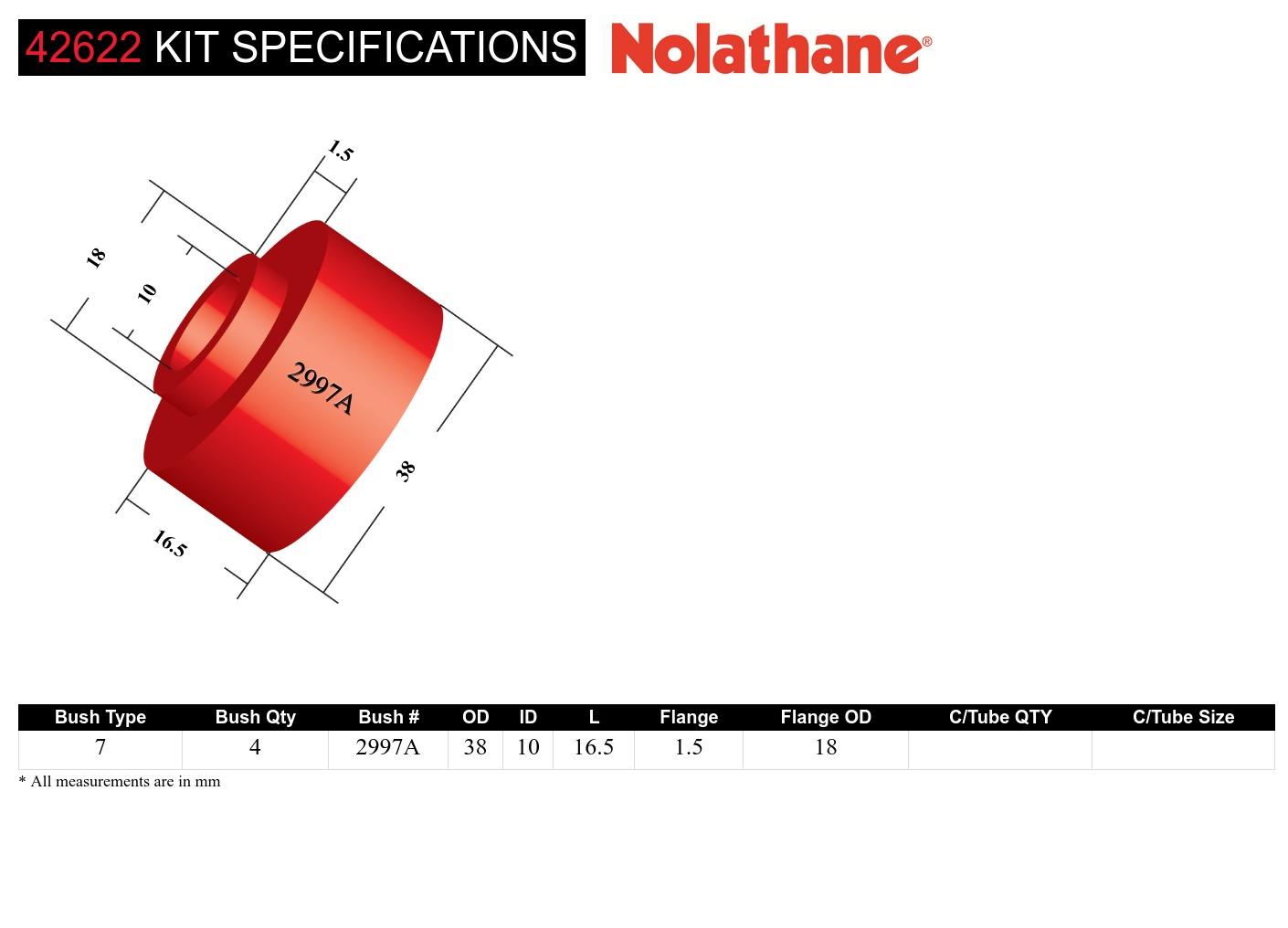

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
7 - Pin Bush With & Without Spigot	4 mm	38 mm	10 mm	16.5 mm	1.5 mm	18 mm			Click Here

Bush Type	7 - Pin Bush With & Without Spigot
Bush Quantity	4 mm
OD (A)	38 mm
ID (B)	10 mm
Length (C)	16.5 mm
Flange Thickness (D)	1.5 mm
Flange OD (E)	18 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Type 7 - Pin Bush With & Without Spigot

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
7	4	38	10	16.5	1.5	18			Click Here

Bush Type	7
QTY	4
OD (A)	38
ID (B)	10
Length (C)	16.5
FL (D)	1.5
FLOD (E)	18
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.08kg	7cm	20cm	14cm
in/lbs	0.18lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.08kg	0.18lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42622
Foot Note 3	Lifetime Warranty

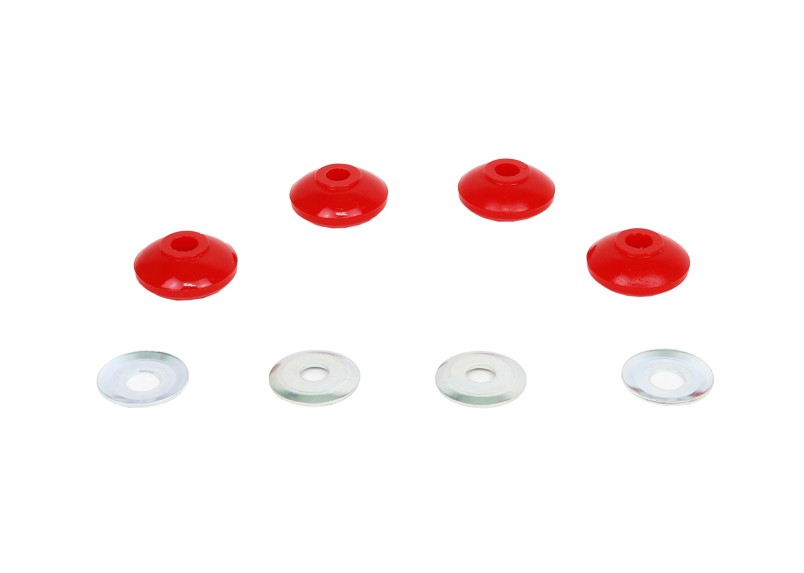

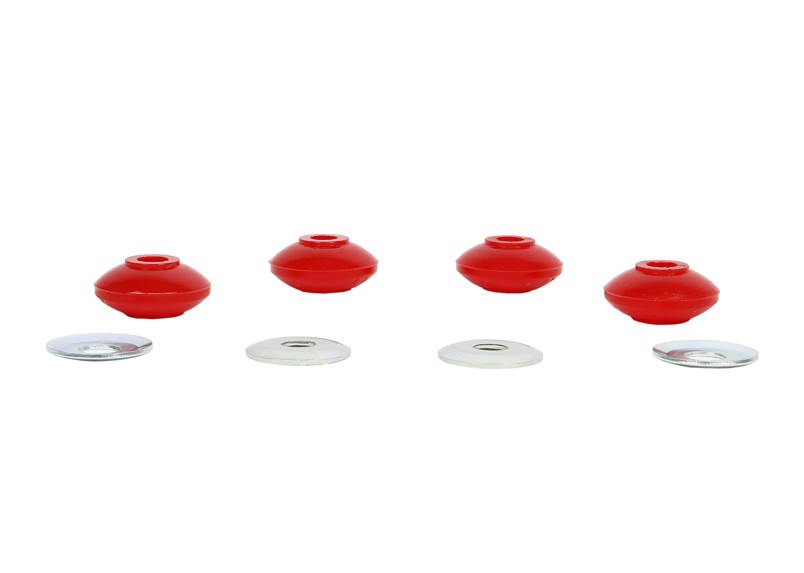

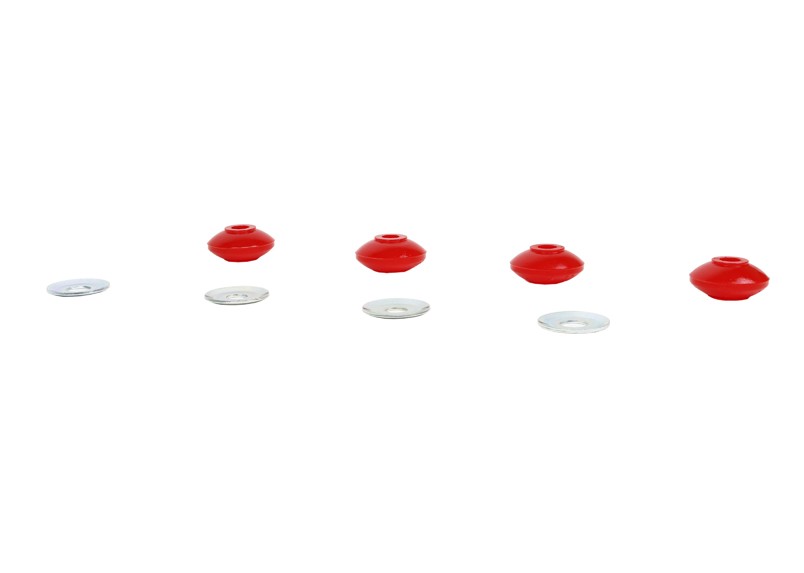

Components Per	4 Bushings, 4 Washers
Product Note	Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 4 Bushings, 4 Washers
EAN	9319924405169

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Rear Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
