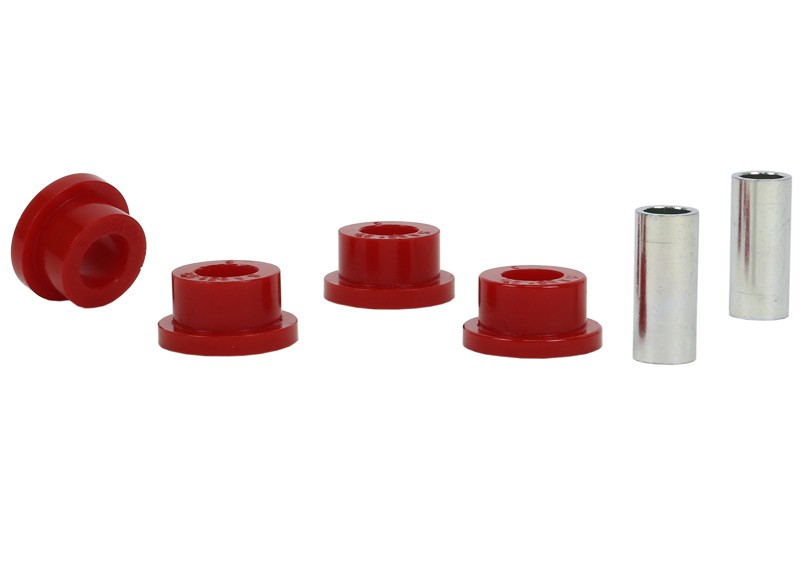

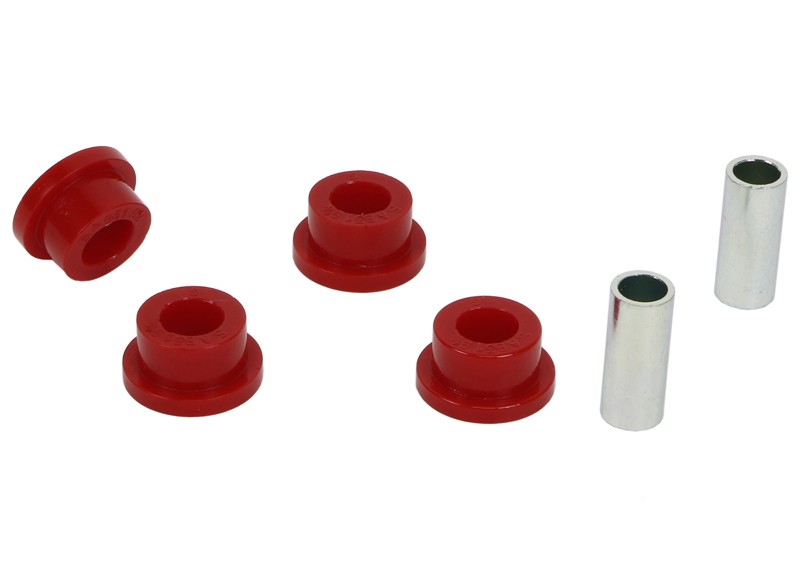

Shock Absorber - Lower Bushing Kit to Suit Ford F-Series 5th-9th Gen

Description

Benefit Note:
Shock absorber advances and demands for improved travel and load bearing has placed extra importance and stress on shock absorber bushings. Nolathane shock bushings enhance the performance of new and used shock absorbers.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

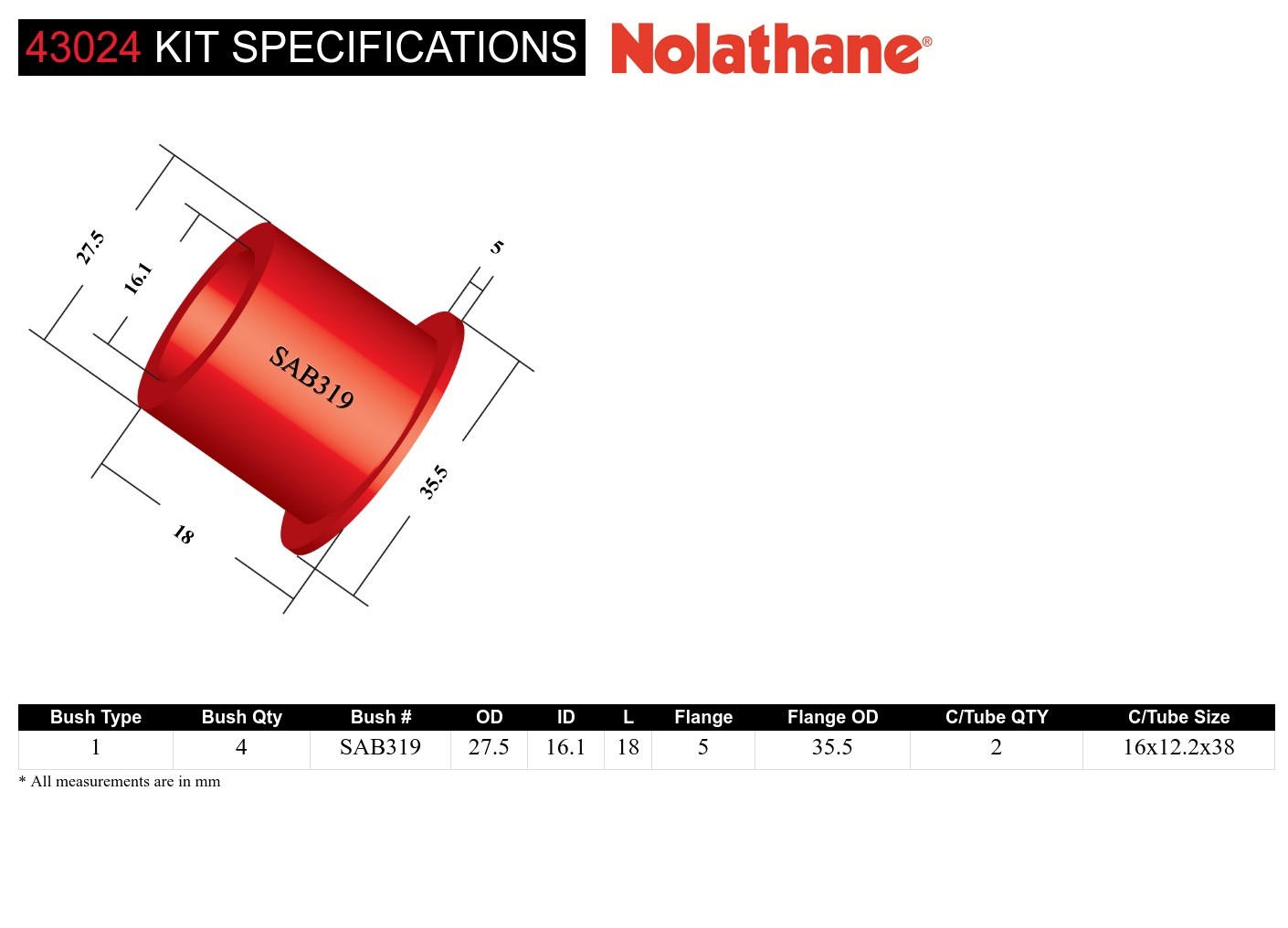

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	4 mm	27.5 mm	16.1 mm	18 mm	5 mm	35.5 mm	2	16x12.2x38 mm	Click Here

Bush Type	1 - Shackle Bushing
Bush Quantity	4 mm
OD (A)	27.5 mm
ID (B)	16.1 mm
Length (C)	18 mm
Flange Thickness (D)	5 mm
Flange OD (E)	35.5 mm
C/Tube Quantity	2
C/Tube ODxIDxL	16x12.2x38 mm
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	4	27.5	16.1	18.0	5	35.5	2	16x12.2x38	Click Here

Bush Type	1
QTY	4
OD (A)	27.5
ID (B)	16.1
Length (C)	18.0
FL (D)	5
FLOD (E)	35.5
C/Tube Qty	2
C/Tube Size	16x12.2x38
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.12kg	7cm	20cm	14cm
in/lbs	0.26lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.12kg	0.26lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	43024
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9314258507398

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
