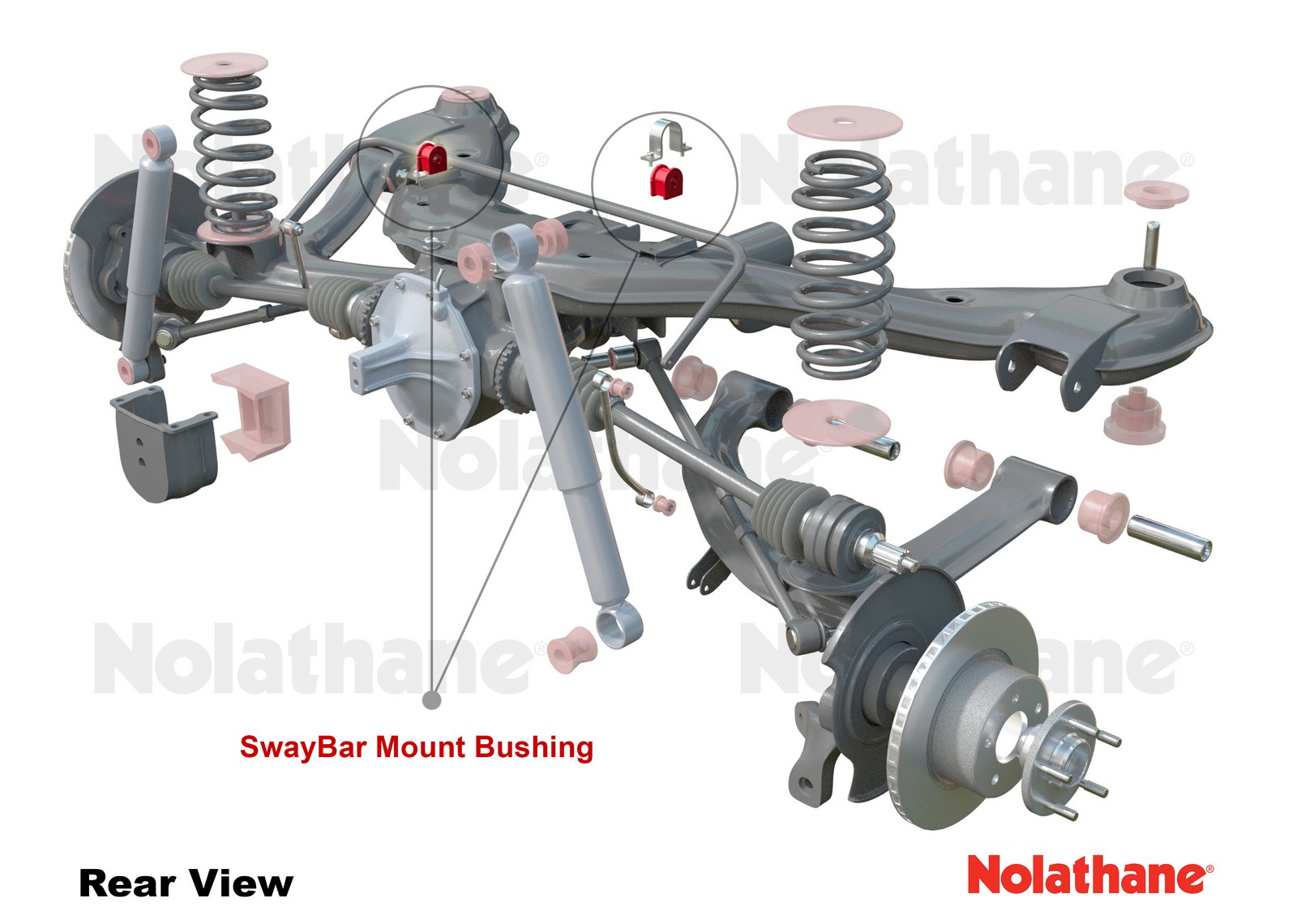

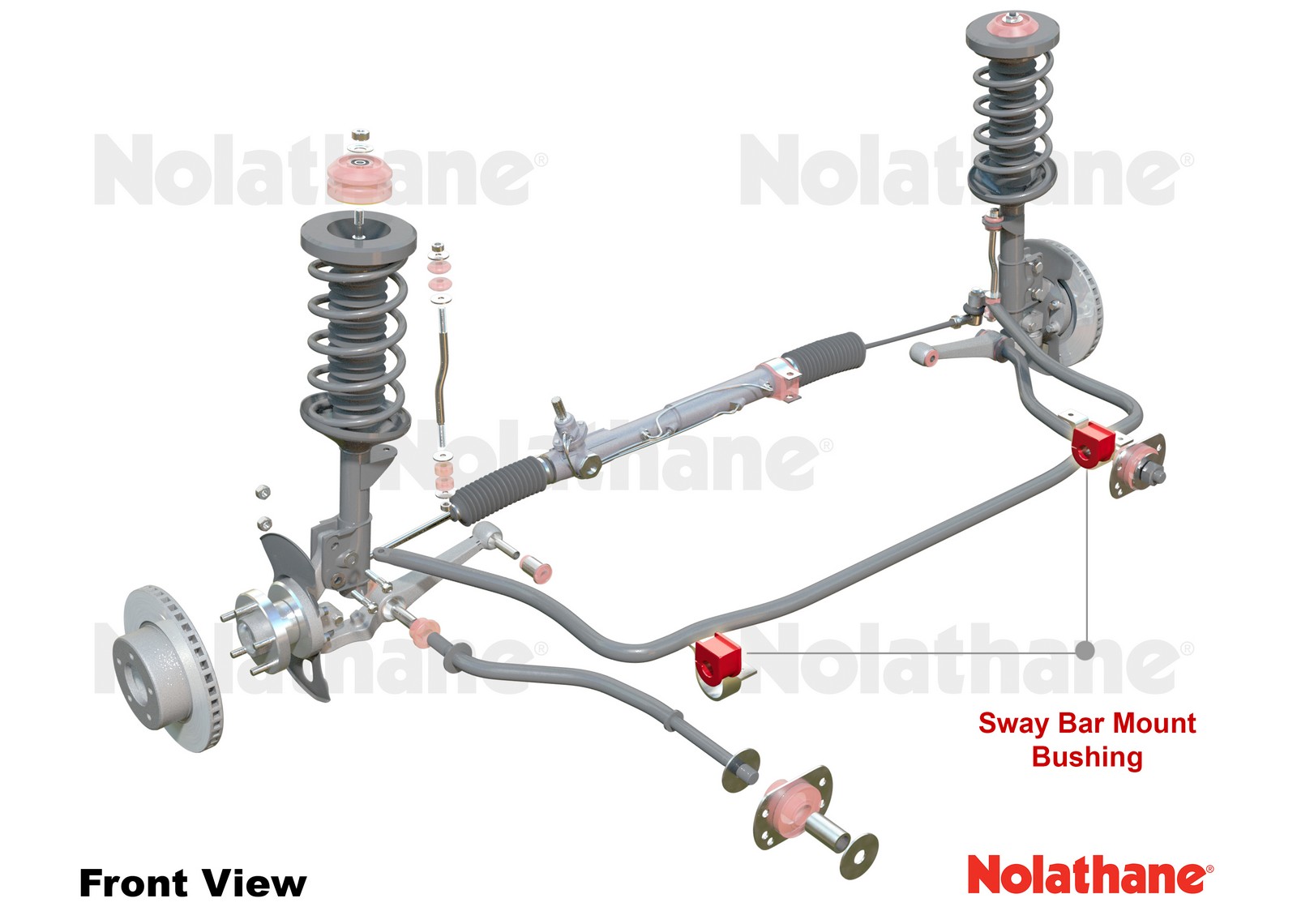

Sway Bar Mount - Bushing Kit 19mm to Suit Datsun 280ZX, 260C and 280C

Description

Benefit Note:

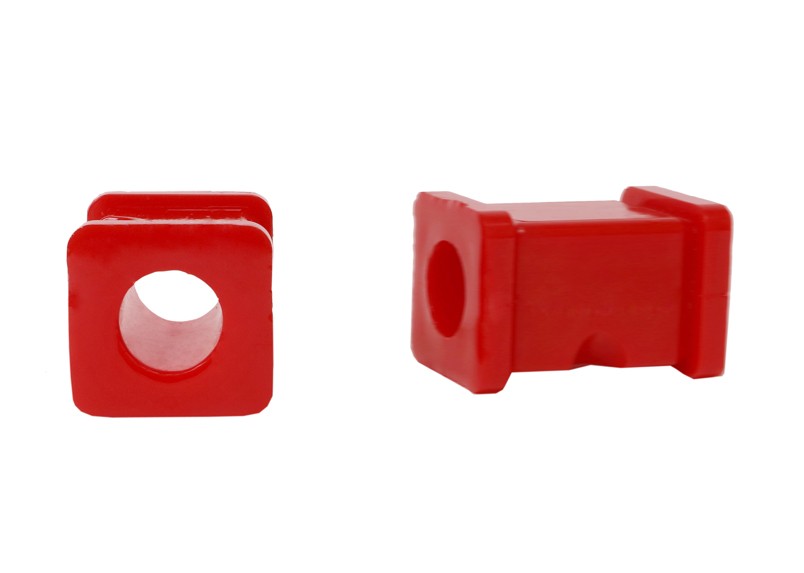

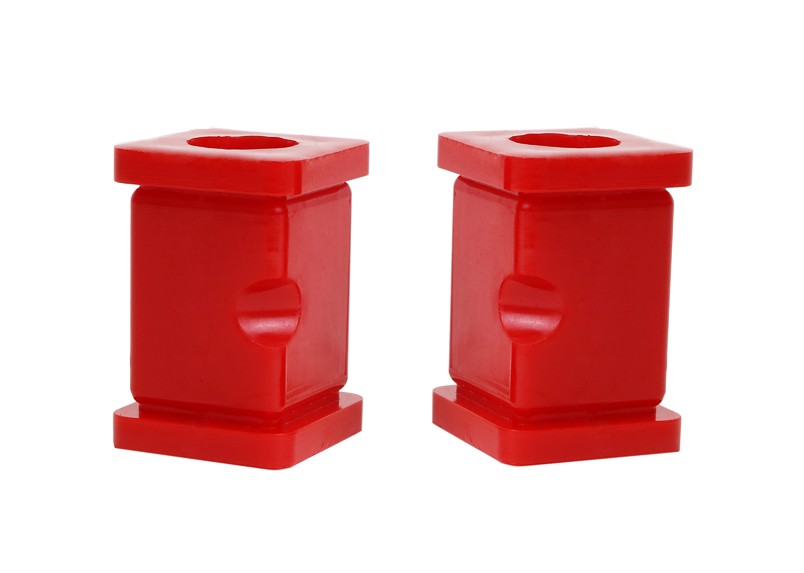

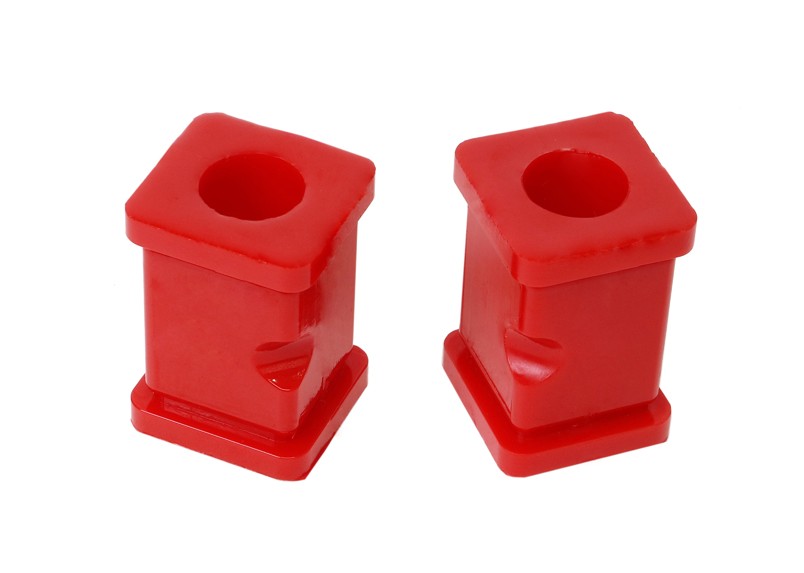

Designed to fit a 19mm sway bar. Nolathane's sway bar mount bushings not only boasts the latest in bushing material technology but feature a knurled ID specifically designed to retain grease. Backed up by a Limited Lifetime Warranty. Nolathane bushings are made from the highest quality elastomers and designed to synchronize your suspension system for optimal safety, handling, performance, ride quality, longevity and reduced maintenance. They are the most positive link between your vehicles body, springs, struts, arms, bars and shocks.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
4 - D-bushing With Flange	2 mm	31 mm	19 mm	52.5 mm	6 mm	36.1 mm			Click Here

Bush Type	4 - D-bushing With Flange
Bush Quantity	2 mm
OD (A)	31 mm
ID (B)	19 mm
Length (C)	52.5 mm
Flange Thickness (D)	6 mm
Flange OD (E)	36.1 mm
C/Tube Quantity
C/Tube ODxIDxL
Similar Bushing Size	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
4	2	31	19	52.5	6	36.1			Click Here

Bush Type	4
QTY	2
OD (A)	31
ID (B)	19
Length (C)	52.5
FL (D)	6
FLOD (E)	36.1
C/Tube Qty
C/Tube Size
Similar Bushings	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	0.12kg	7cm	20cm	14cm
in/lbs	0.26lbs	2.76"	7.87"	5.51"

Units	cm/kg	in/lbs
Weight	0.12kg	0.26lbs
Length	7cm	2.76"
Width	20cm	7.87"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	42310
Foot Note 2	19mm
Foot Note 3	Lifetime Warranty
Components Per	2 Bushings
Product Note	Minimises vehicle sway during turns, keeping the vehicle stable and balanced; the best, replacement upgrade. Includes: 2 Bushings
EAN	9314258998394

Installation & Fitment Guide

More Information
Installation Time	1 Hour
Installation Difficulty	Easy if you have specialist tools and know what your doing.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
