What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

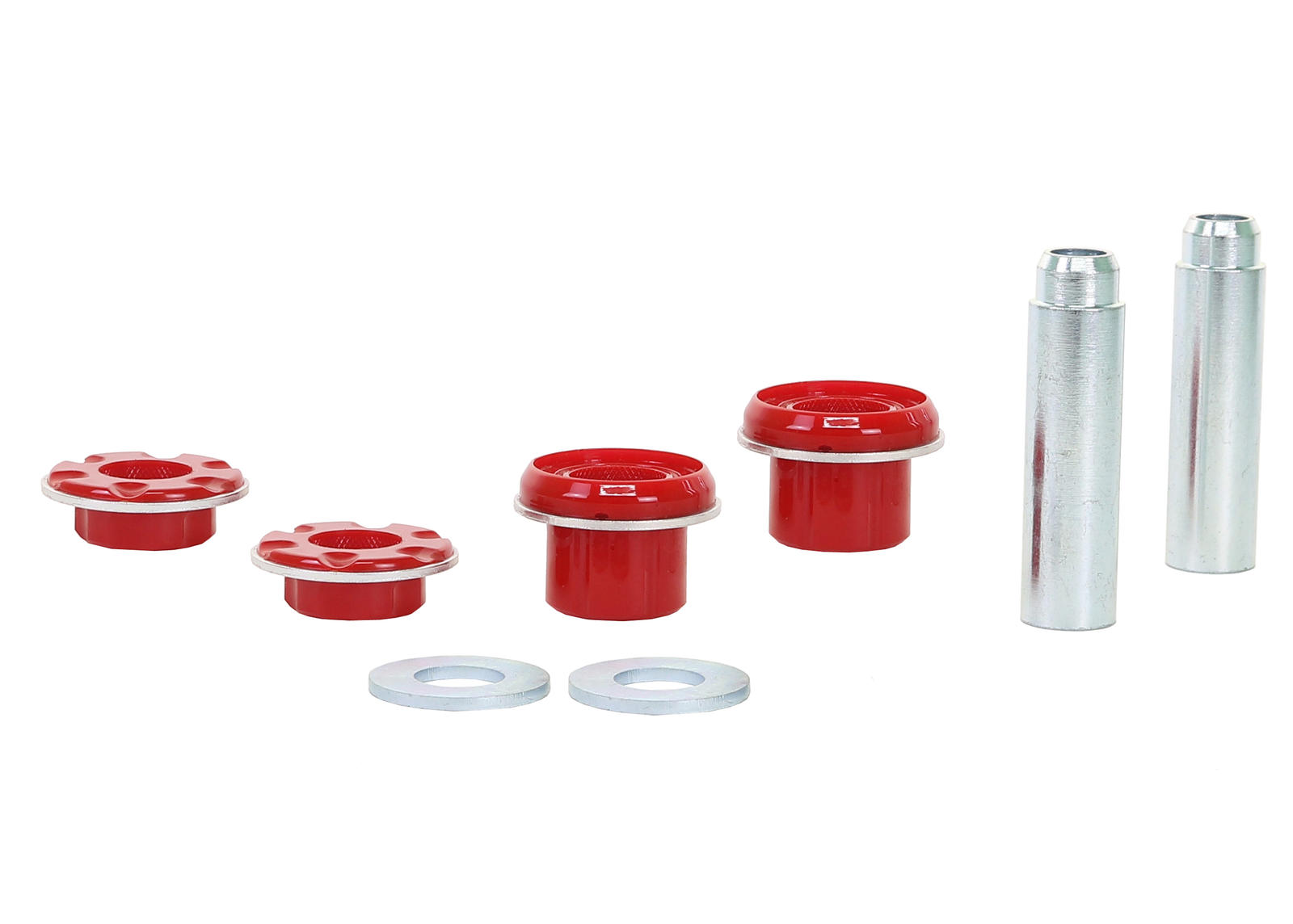

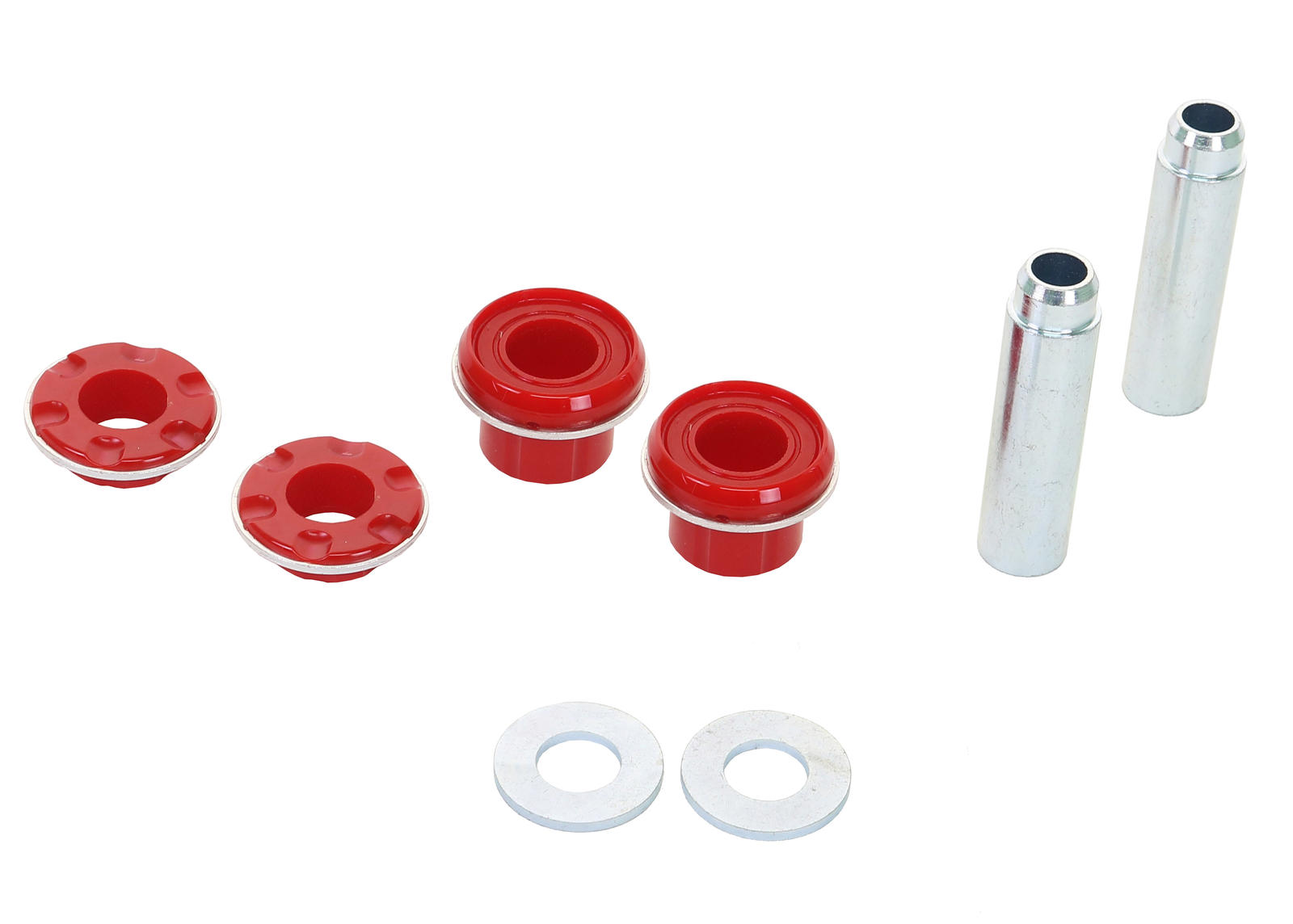

Front Subframe - Rear Bushing Kit to Suit Nissan Dualis, X-Trail and Renault Koleos

Description

Benefit Note:
The Nolathane kit replaces the bushings in the front subframe rear bushing to dramatically reduce front cross member misalignment and movement which allows a more positive feel from the front end during cornering.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

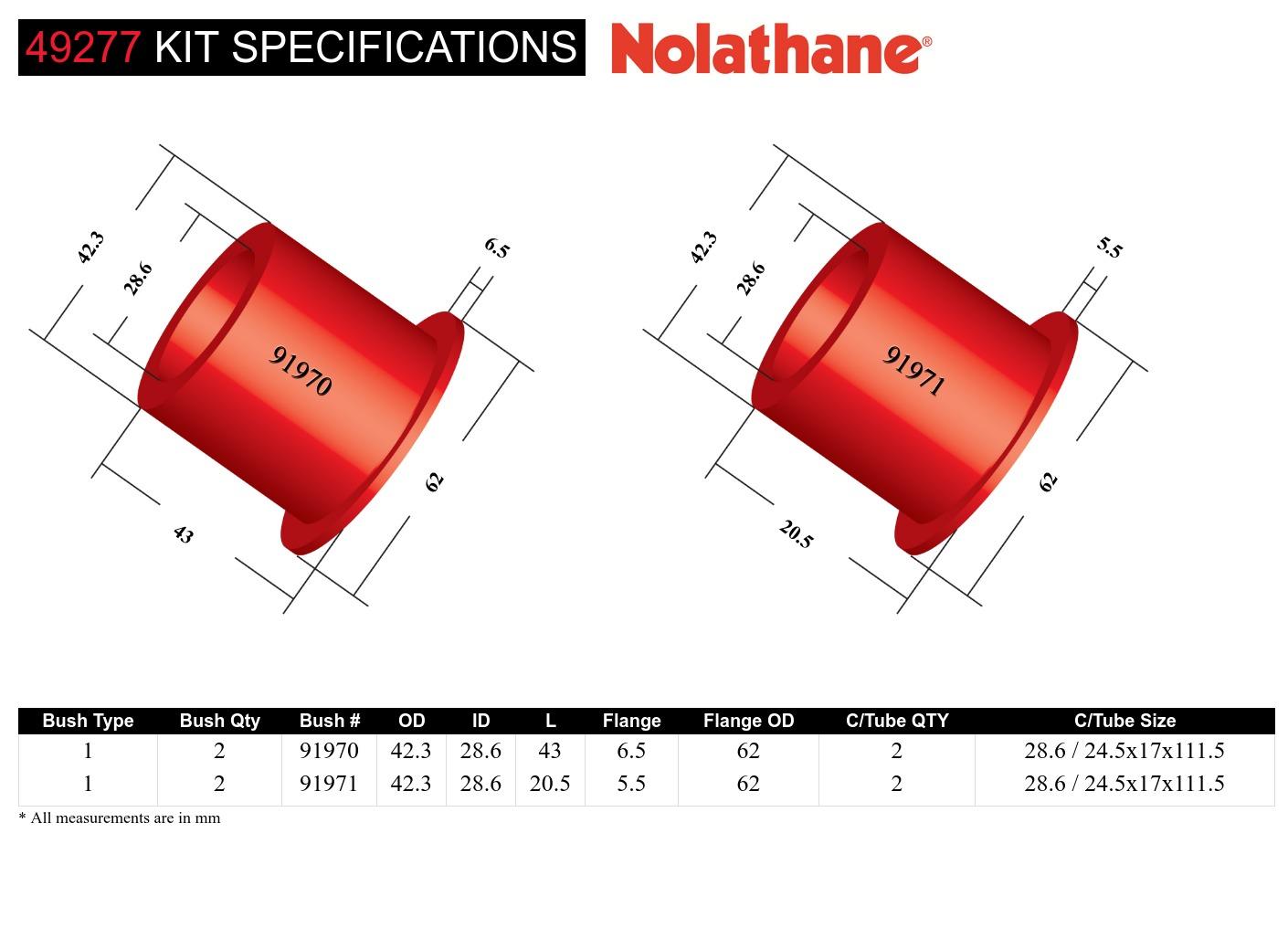

Specifications

Kit Specifications

Bush Type	Bush Quantity	OD (A)	ID (B)	Length (C)	Flange Thickness (D)	Flange OD (E)	C/Tube Quantity	C/Tube ODxIDxL	Similar Bushing Size
1 - Shackle Bushing	2 mm	42.3 mm	28.6 mm	43 mm	6.5 mm	62 mm	2	28.6 / 24.5x17x111.5 mm	Click Here
1 - Shackle Bushing	2 mm	42.3 mm	28.6 mm	20.5 mm	5.5 mm	62 mm	2	28.6 / 24.5x17x111.5 mm	Click Here

Bush Type	1 - Shackle Bushing	1 - Shackle Bushing
Bush Quantity	2 mm	2 mm
OD (A)	42.3 mm	42.3 mm
ID (B)	28.6 mm	28.6 mm
Length (C)	43 mm	20.5 mm
Flange Thickness (D)	6.5 mm	5.5 mm
Flange OD (E)	62 mm	62 mm
C/Tube Quantity	2	2
C/Tube ODxIDxL	28.6 / 24.5x17x111.5 mm	28.6 / 24.5x17x111.5 mm
Similar Bushing Size	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	42.3	28.6	43.0	6.5	62	2	28.6 / 24.5x17x111.5	Click Here
1	2	42.3	28.6	20.5	5.5	62	2	28.6 / 24.5x17x111.5	Click Here

Bush Type	1	1
QTY	2	2
OD (A)	42.3	42.3
ID (B)	28.6	28.6
Length (C)	43.0	20.5
FL (D)	6.5	5.5
FLOD (E)	62	62
C/Tube Qty	2	2
C/Tube Size	28.6 / 24.5x17x111.5	28.6 / 24.5x17x111.5
Similar Bushings	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	1kg	10cm	26cm	16cm
in/lbs	2.2lbs	3.94"	10.24"	6.3"

Units	cm/kg	in/lbs
Weight	1kg	2.2lbs
Length	10cm	3.94"
Width	26cm	10.24"
Height	16cm	6.3"

Misc. Product Information

More Information
SKU	49277
Foot Note 3	Lifetime Warranty
Components Per	4 Bushings, 2 Tubes, 2 Washers
Product Note	Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
EAN	9319924463756

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	2.5 Hours
Installation Difficulty	Tricky installation may take longer then you think if you are not experienced.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment

Compatible Vehicles

Select any of the below vehicles to get detailed specifications on how this product interacts with your car. Including fitting positions, time and other vehicle specific information.
