What makes Nolathane different from OEM suspension components?

Nolathane suspension products are engineered for performance and durability well beyond OEM standards. While factory (OEM) components often use soft rubber bushings that degrade over time and under load, Nolathane uses advanced polyurethane and bushing technology that resists oil, heat, abrasion, and weathering. This results in sharper handling, more responsive steering, better load control, and significantly improved lifespan — without the harshness of traditional solid bushings.

Do I need a wheel alignment after installing Nolathane components?

It’s recommended to perform a wheel alignment after installation to ensure optimal performance and tire wear.

Are Nolathane Fixed Offset Upper Control Arms (UCAs) necessary for lifted vehicles?

They help maintain correct alignment and steering geometry after a vehicle is lifted.

Can I install Nolathane products myself?

Some products are DIY-friendly, but professional installation is recommended for suspension components.

Do Nolathane products come with a warranty?

Yes. Please refer to our warranty policy for details.

Rear Subframe - Bushing Kit to Suit Chrysler 300C and Dodge Challenger, Charger

Description

Benefit Note:

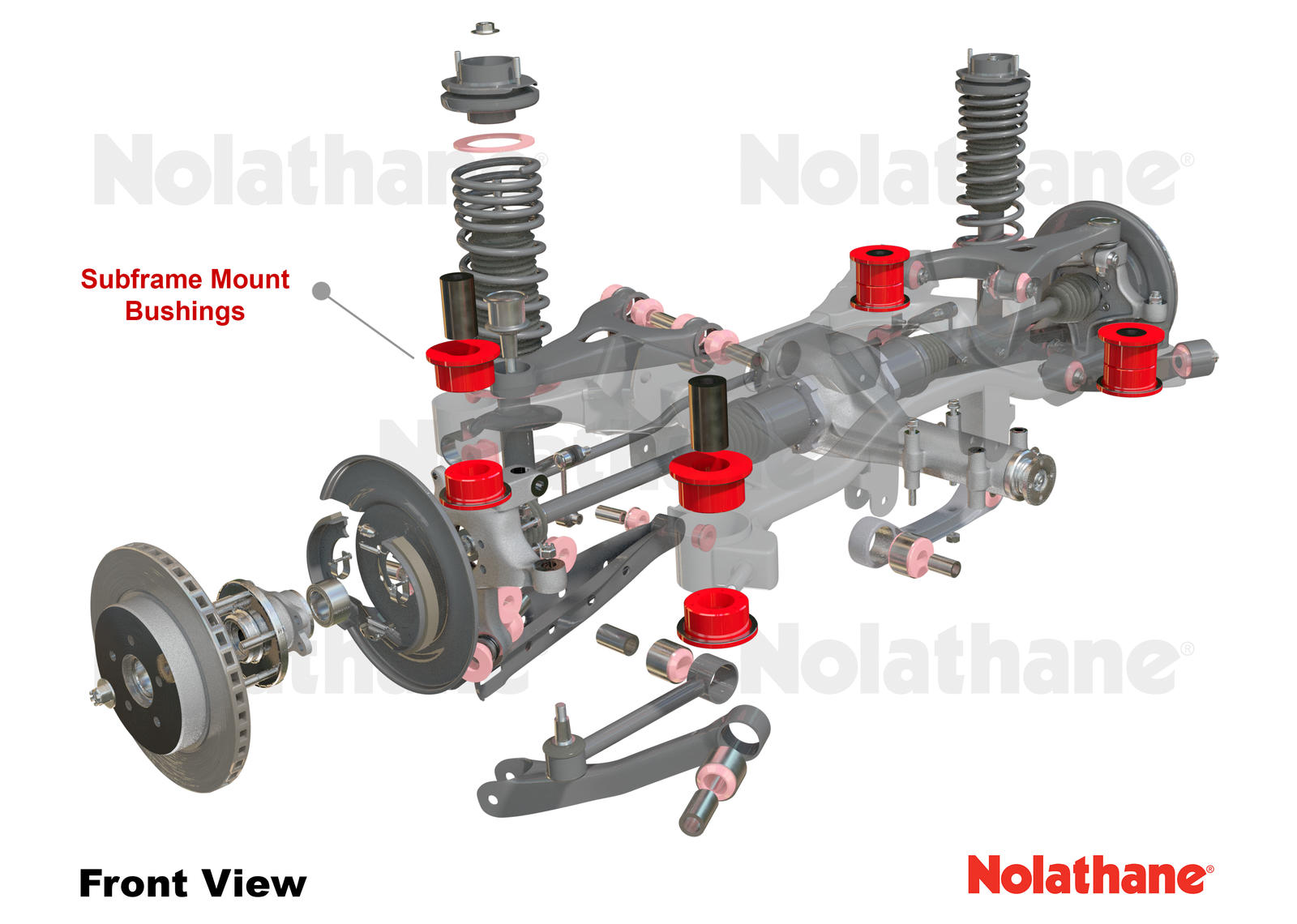

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.

*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

Specifications

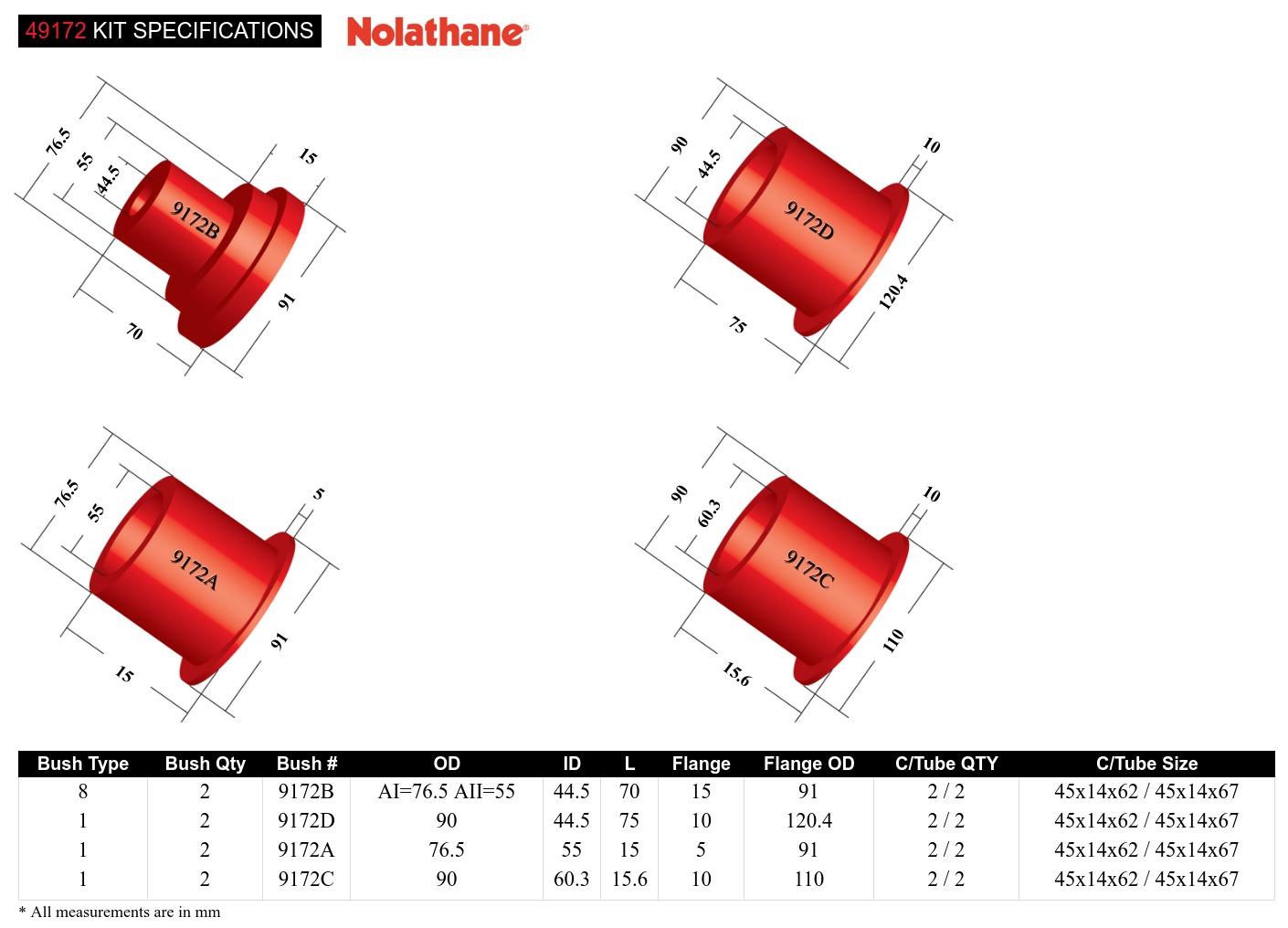

Bushing Design Dimensions (mm)

More Information
Bush Type	QTY	OD (A)	ID (B)	Length (C)	FL (D)	FLOD (E)	C/Tube Qty	C/Tube Size	Similar Bushings
1	2	90	44.5	75.0	10	120.4	2 / 2	45x14x62 / 45x14x67	Click Here
8	2	AI=76.5 AII=55	44.5	70.0	15	91	2 / 2	45x14x62 / 45x14x67	Click Here
1	2	76.5	55	15.0	5	91	2 / 2	45x14x62 / 45x14x67	Click Here
1	2	90	60.3	15.6	10	110	2 / 2	45x14x62 / 45x14x67	Click Here

Bush Type	1	8	1	1
QTY	2	2	2	2
OD (A)	90	AI=76.5 AII=55	76.5	90
ID (B)	44.5	44.5	55	60.3
Length (C)	75.0	70.0	15.0	15.6
FL (D)	10	15	5	10
FLOD (E)	120.4	91	91	110
C/Tube Qty	2 / 2	2 / 2	2 / 2	2 / 2
C/Tube Size	45x14x62 / 45x14x67	45x14x62 / 45x14x67	45x14x62 / 45x14x67	45x14x62 / 45x14x67
Similar Bushings	Click Here	Click Here	Click Here	Click Here

Looking for that hard-to-find part? Start your search here Whiteline Bushing Type & Size Register

Packaged Weight and Dimensions

More Information
Units	Weight	Length	Width	Height
cm/kg	5.43kg	22cm	19cm	14cm
in/lbs	11.97lbs	8.66"	7.48"	5.51"

Units	cm/kg	in/lbs
Weight	5.43kg	11.97lbs
Length	22cm	8.66"
Width	19cm	7.48"
Height	14cm	5.51"

Misc. Product Information

More Information
SKU	49172
Foot Note 3	Lifetime Warranty

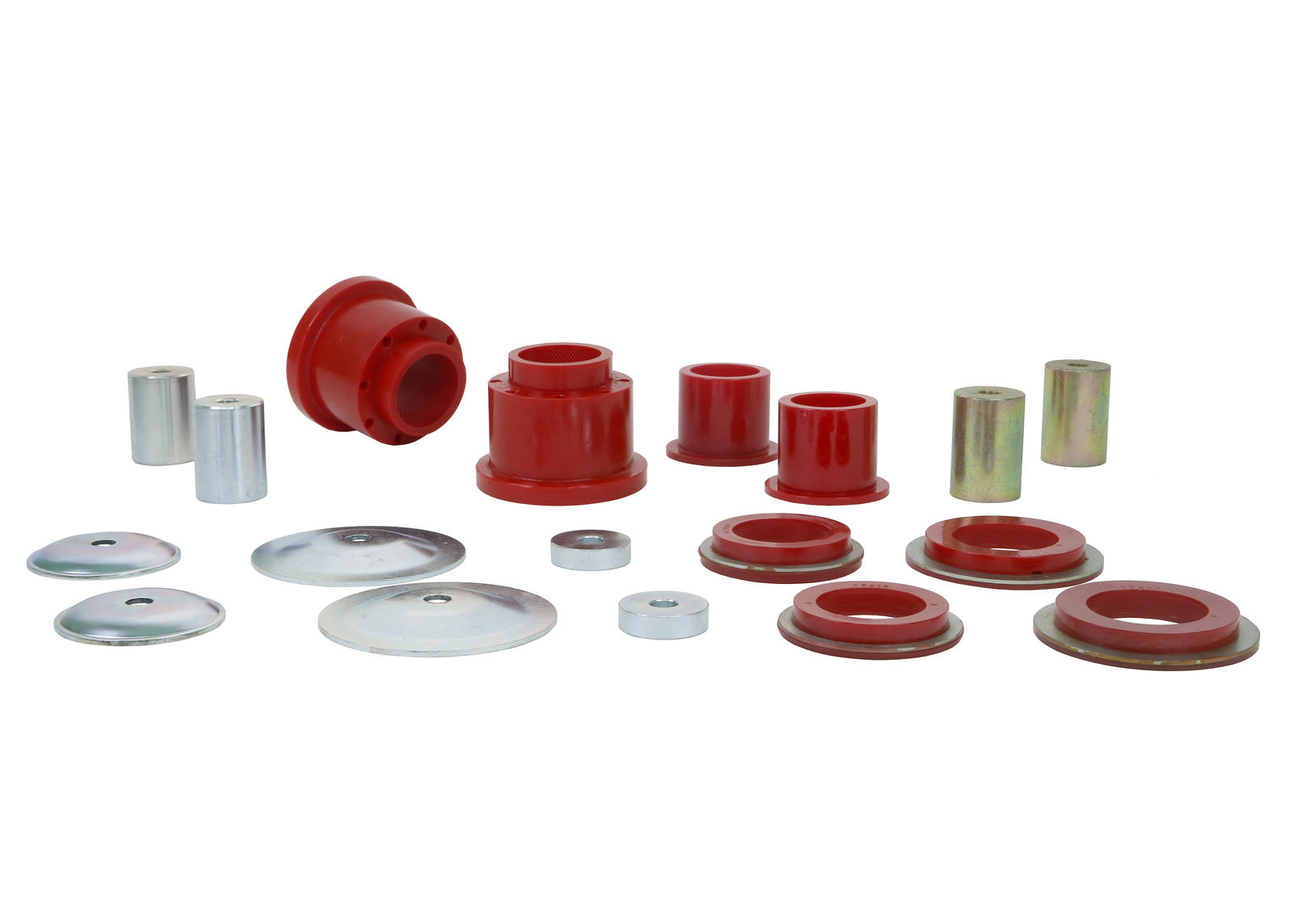

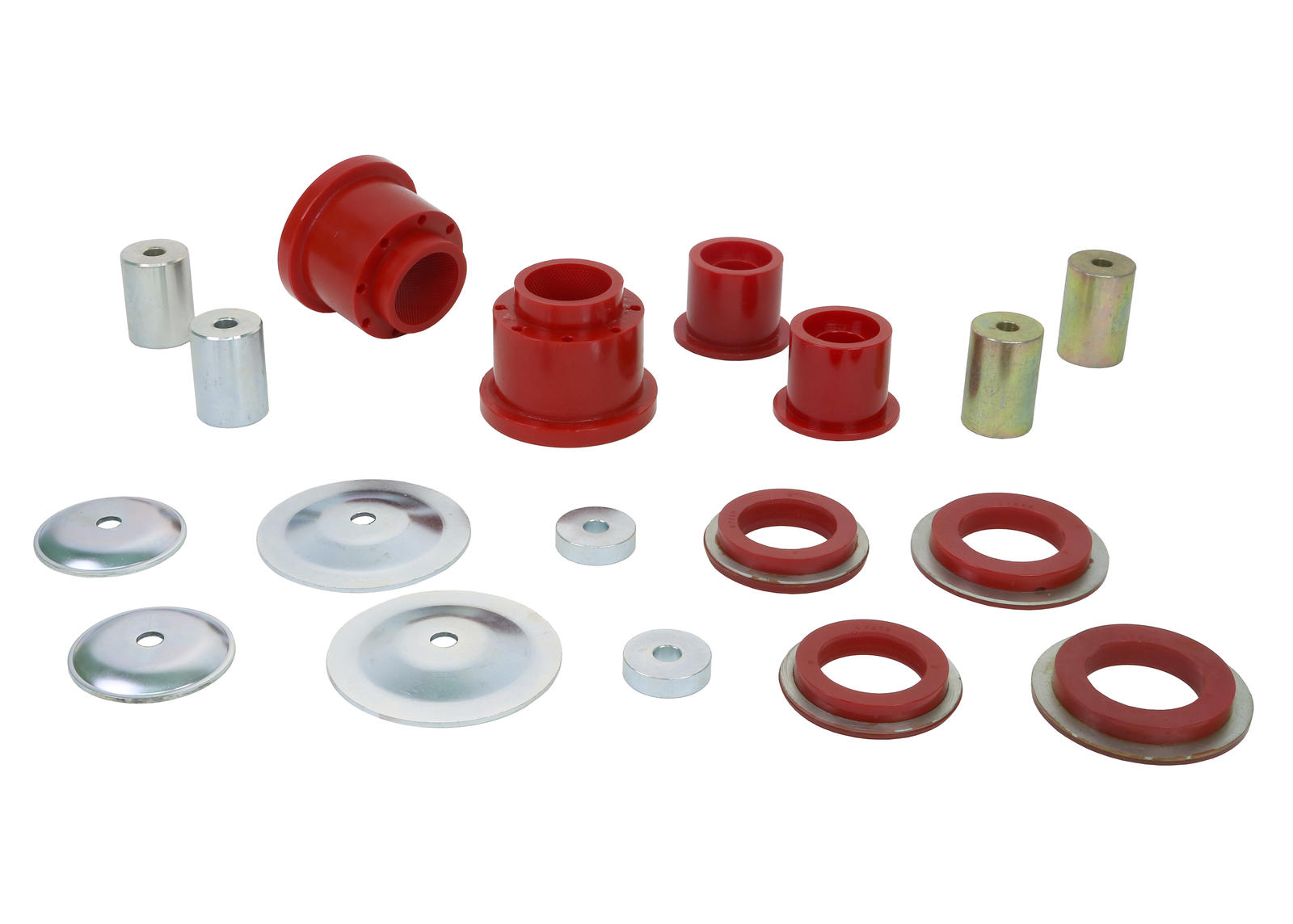

Components Per	8 Bushings, 4 Tubes, 6 Washers
Product Note	Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
EAN	9330074010614

Installation & Fitment Guide

More Information
Install Guide	Downloads
Installation Time	4 Hours
Installation Difficulty	Suspension Specialist recommended.
Wheel Alignment Required	Yes
Recommend Wheel Alignment	Front Wheel Alignment
