United StatesSubframe - Bushing Kit to Suit Nissan Skyline R32, R33, R34
 SKU | 49155 |
|---|---|
 Warranty | lifetime warranty |
 Installation Time | 4 Hours |
 Fitting Position | Rear Axle |

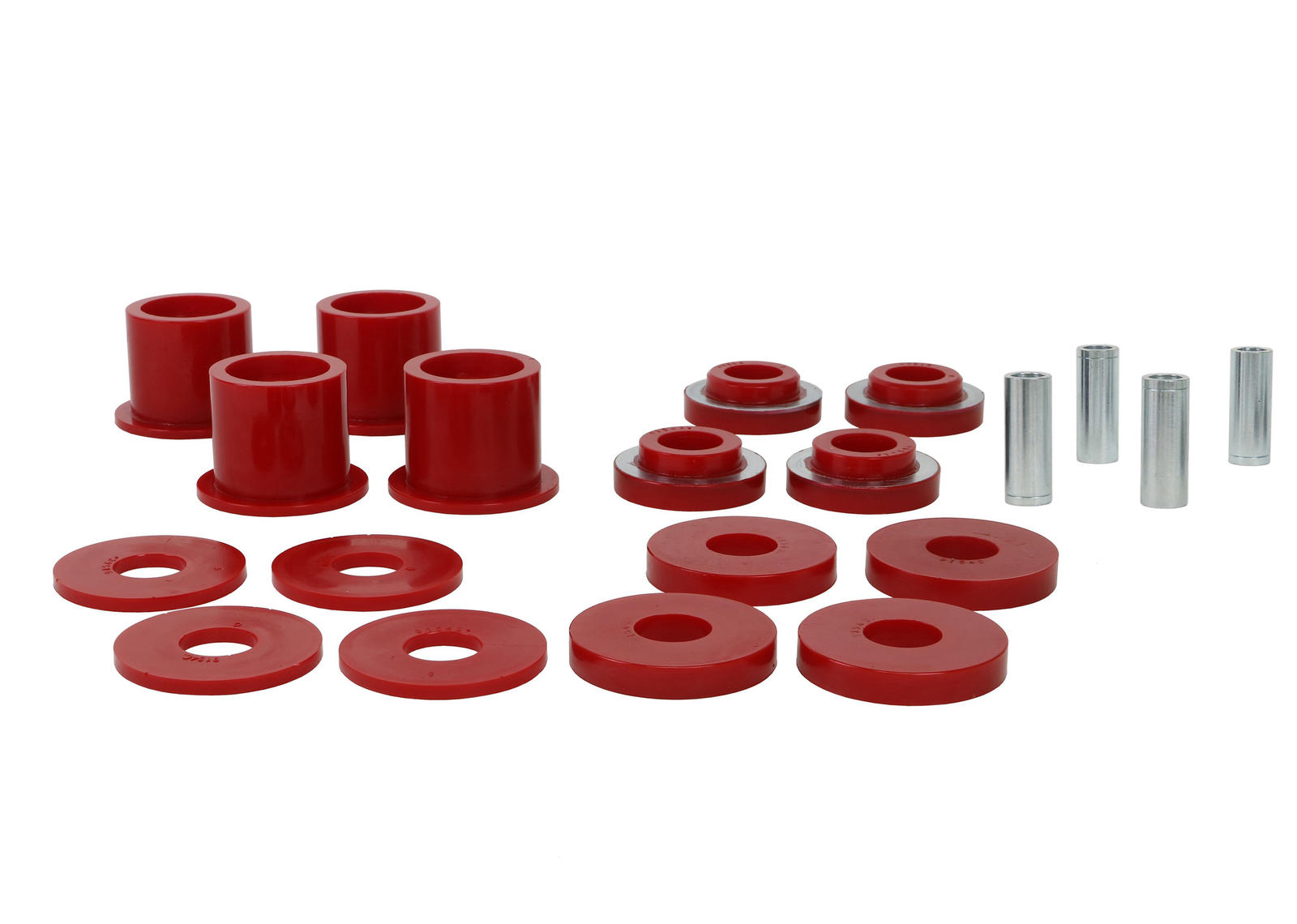

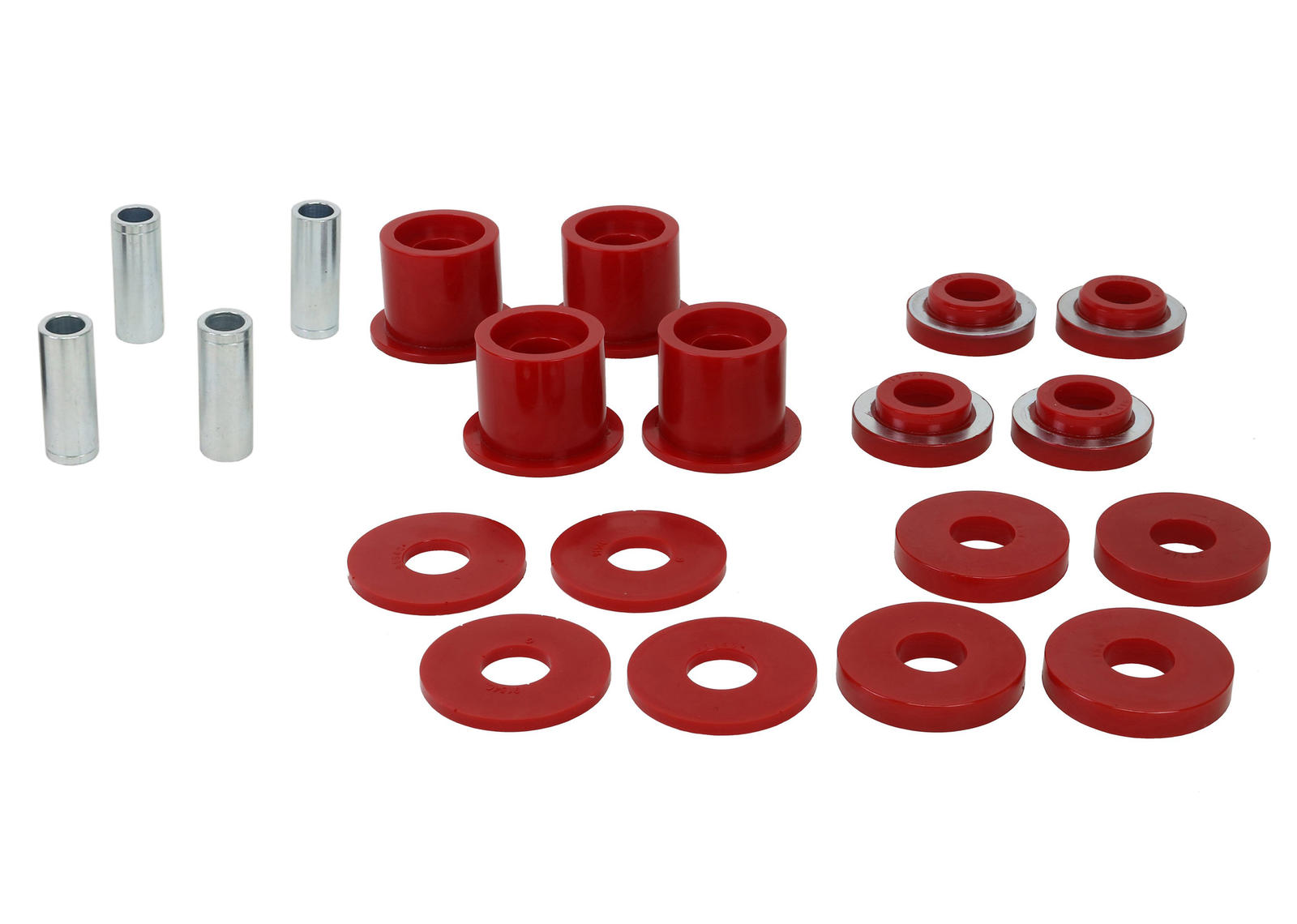

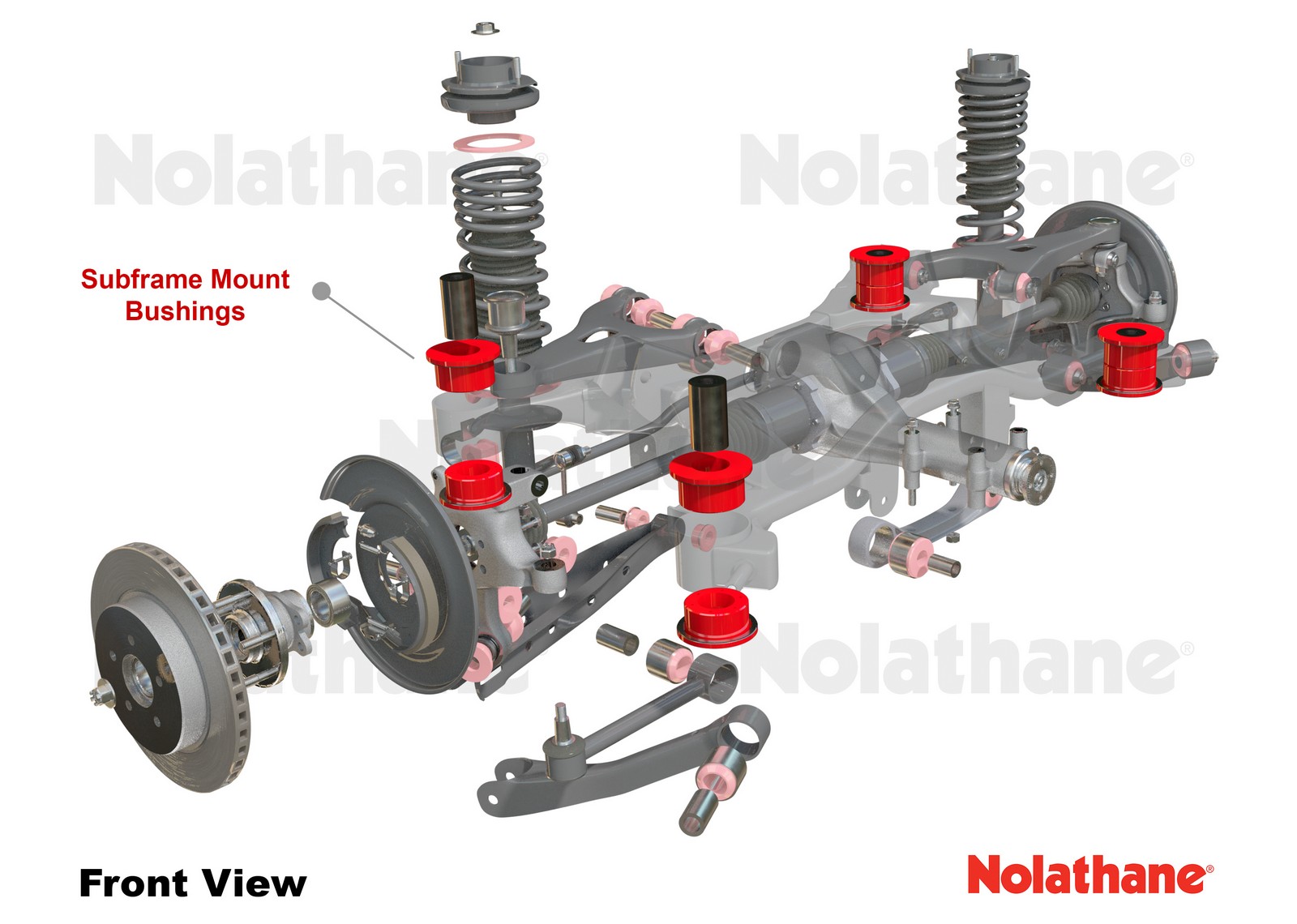

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
*All prices shown on the website include GST. You will not be charged any additional fees related to tax. For international orders, GST is removed, local import duties or taxes may apply but will not be charged by us.

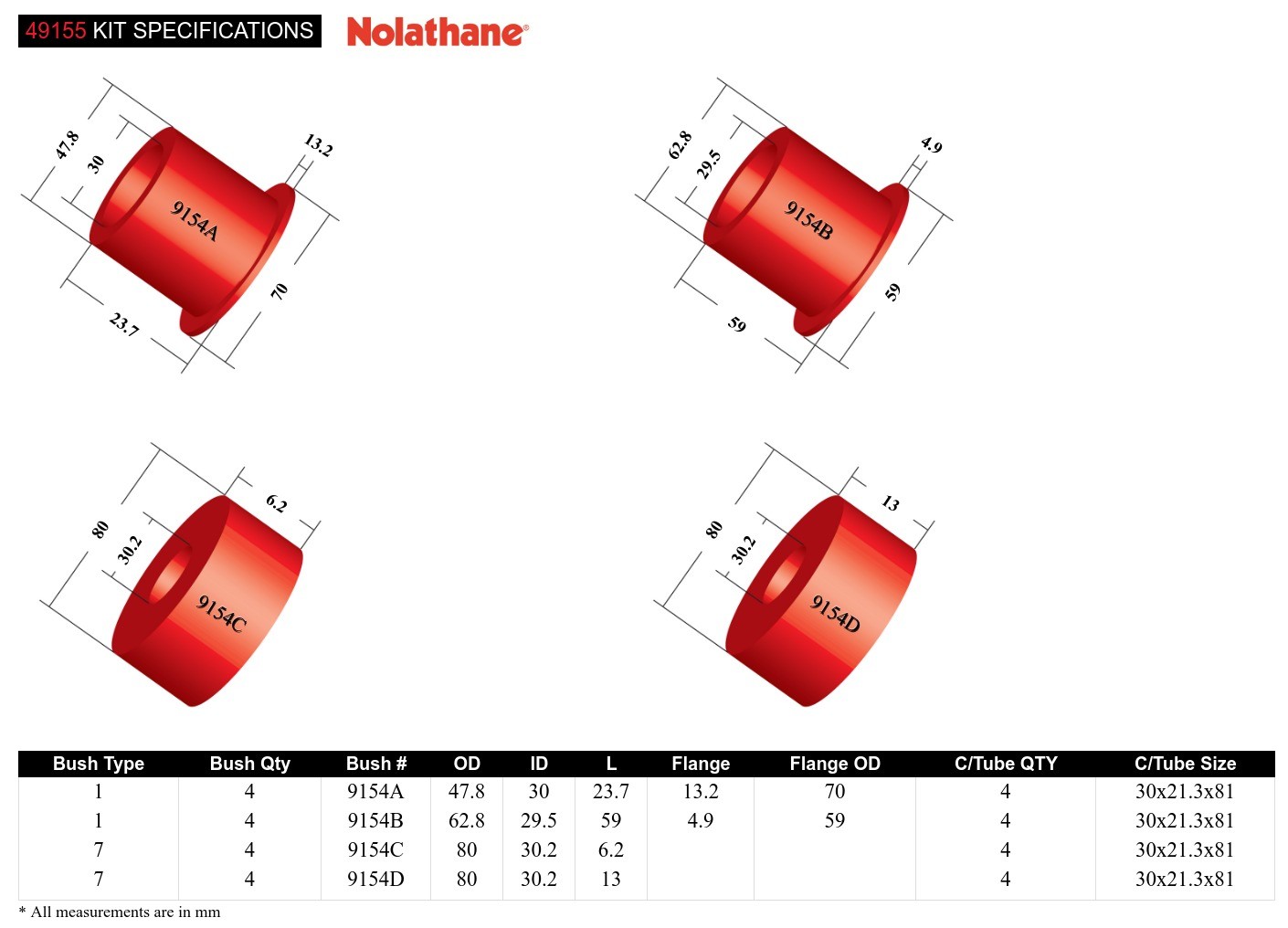

Bushing Design Dimensions (mm)
| Bush Type | QTY | OD (A) | ID (B) | Length (C) | FL (D) | FLOD (E) | C/Tube Qty | C/Tube Size | Similar Bushings |
|---|---|---|---|---|---|---|---|---|---|
| 1 - Shackle Bushing | 4 | 47.8 | 30 | 23.7 | 13.2 | 70 | 4 | 30x21.3x81 | Click Here |
| 7 - Pin Bush With & Without Spigot | 4 | 80 | 30.2 | 6.2 | 4 | 30x21.3x81 | Click Here | ||
| 1 - Shackle Bushing | 4 | 62.8 | 29.5 | 59 | 4.9 | 59 | 4 | 30x21.3x81 | Click Here |
| 7 - Pin Bush With & Without Spigot | 4 | 80 | 30.2 | 13 | 4 | 30x21.3x81 | Click Here |
| Bush Type | 1 - Shackle Bushing | 7 - Pin Bush With & Without Spigot | 1 - Shackle Bushing | 7 - Pin Bush With & Without Spigot |
|---|---|---|---|---|
| QTY | 4 | 4 | 4 | 4 |
| OD (A) | 47.8 | 80 | 62.8 | 80 |
| ID (B) | 30 | 30.2 | 29.5 | 30.2 |
| Length (C) | 23.7 | 6.2 | 59 | 13 |
| FL (D) | 13.2 | 4.9 | ||
| FLOD (E) | 70 | 59 | ||
| C/Tube Qty | 4 | 4 | 4 | 4 |
| C/Tube Size | 30x21.3x81 | 30x21.3x81 | 30x21.3x81 | 30x21.3x81 |
| Similar Bushings | Click Here | Click Here | Click Here | Click Here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Packaged Weight and Dimensions
| Units | Weight | Length | Width | Height |
|---|---|---|---|---|
| cm/kg | 2.067kg | 40cm | 10cm | 20cm |
| in/lbs | 4.56lbs | 15.75" | 3.94" | 7.87" |
| Units | cm/kg | in/lbs |
|---|---|---|
| Weight | 2.067kg | 4.56lbs |
| Length | 40cm | 15.75" |
| Width | 10cm | 3.94" |
| Height | 20cm | 7.87" |
Misc. Product Information
| SKU | 49155 |
| Foot Note 1 | Installs into original shell |
| Foot Note 3 | Lifetime Warranty |
| Components Per | 12 Bushings, 4 Tubes |
| Product Note | Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes: |
| EAN | 9330074007218 |
 Install Guide | Downloads |
|---|---|
| Installation Time | 4 Hours |
 Installation Difficulty | Suspension Specialist recommended. |
 Wheel Alignment Required | Yes |
| Recommend Wheel Alignment | Rear Wheel Alignment |
